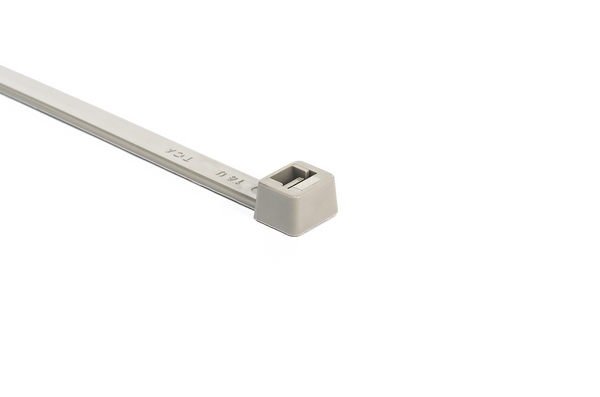

Cable tie inside serrated, 387.0x7.6mm, ∅5.0-105.0mm, grey, 1000pcs.
Art.-Nr. 111-02383 | T120R-PA46-GY |  Details

Heavy duty T-Series cable ties feature inside serrations to provide a positive hold on wire and cable bundles.

    • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
    • Available in different sizes to cover various bundle diameters
    • Low smoke generation in the event of a fire
    • PA46 is a moisture sensitive material
    • Inside serrated cable tie offers strong hold around bundles
    • Easy application either manually or with an application tool
    • Operating temperature (long-term) up to +130 °C
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Grey (GY)
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T120R-PA46-GY
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family T-Series in PA46
    Product Group Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120R
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    Cable Tie Head Length (metric) 10.5mm
    Cable Tie Head Width (metric) 12.65mm
    Height (H) 7.35mm
    Length (L) 387.0mm
    Min.Tensile Strength 535N
    Strap Width max. (G) 0.50"
    Thickness (T) 1.9mm
    Width (W) 7.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Limited Fire Hazard Yes
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026729480
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 12.63kg
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
