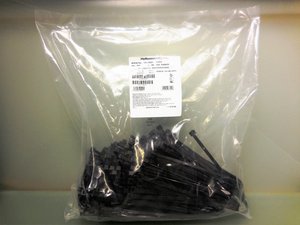

Cable tie inside serrated, 225.0x7.6mm, ∅5.0-55.0mm, black, 500pcs.
Art.-Nr. 111-12821
| T120S-PA66HS-BK
|
Details
- Heat stabilized cable ties (PA66HS) for temperatures up to +105 °C
- Available in a wide range of sizes to cover almost every application
- Inside serration provides a strong hold onto bundles
- Manual and/or pneumatic tools available for greater process reliability
- Commonly offered in natural and black, other colors available on request
More products in this product group:
| Application | These inside serrated cable ties are made from heat stabilized Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T120S-PA66HS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | T-Series in PA66HS black |
| Product Group | Cable Ties for temperatures up to + 105°C (heat stabilised) |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 225x7.6 mm PA66HS black |
| Tie Closure | plastic pawl |
| Type | T120S |
| Variant | Inside Serrated |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +125 °C |
| Plenum Rating | AH-2 |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL 62275 |
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026425245 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.45m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01013m³ |
| Packaging 1 - Weight (kg) | 1.609501kg |
| Packaging 1 - Width (m) | 0.25m |
| Packaging 3 - Height (m) | 0.142875m |
| Packaging 3 - Length (m) | 0.5159375m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0229m³ |
| Packaging 3 - Weight (kg) | 3.739002kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.145m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 28000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.099m³ |
| Packaging 4 - Weight (kg) | 125.692kg |
| Packaging 4 - Width (m) | 0.8m |
