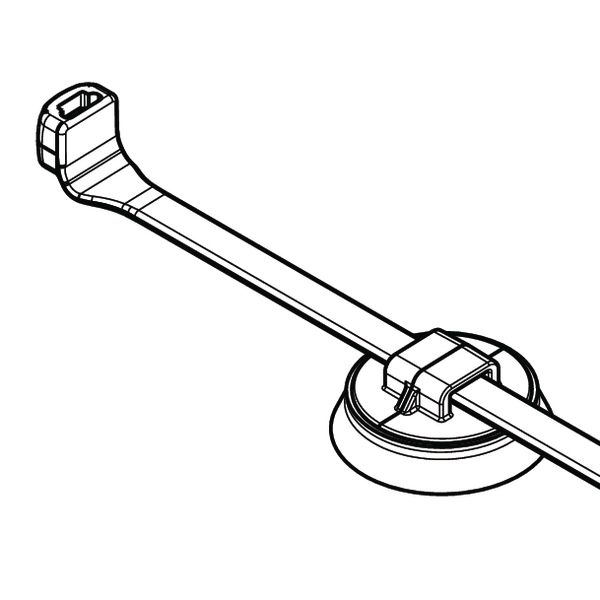

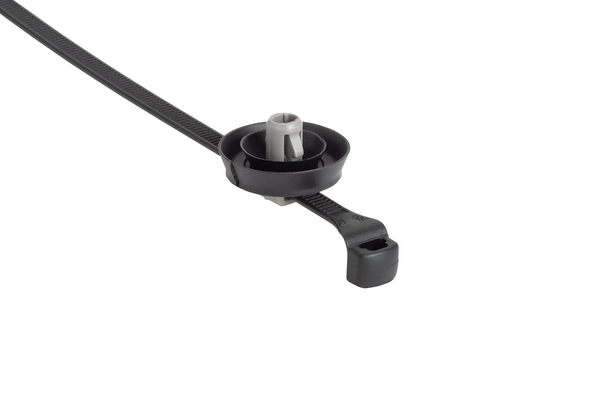

Fixing tie for hole (round), ∅5.0-50.0mm, black/grey, 500pcs.
Art.-Nr. 156-03942
| LPT50RSRAH6.5D1.4TSD-PA66HS/PA66HIRHSUV-BK/GY
|
Details
- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions
- Seal protects against splash water
- Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
Request your individual offer now
Request quote
More products in this product group:
| Application | The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK), Grey (GY) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | LPT50RSRAH6.5D1.4TSD-PA66HS/PA66HIRHSUV-BK/GY |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for round holes, sealed |
| Product Group | 2-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | LPT50RSRAH6.5D1.4TSD |
|
|
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 5.0-50.0mm |
| Bundle ∅ min. | 5.0mm |
| Height (H) | 13.85mm |
| Length (L) | 194.6mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 1.2 - 1.8mm |
| Strap Width max. (G) | 0.2 |
| Strap Width max. (G) | 5.08mm |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.1 - 6.9 mm, 6.15 - 6.55 mm (hexagonal) |
| for Panel Thickness min - max | 1.2 - 1.8 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
