23/12/2024

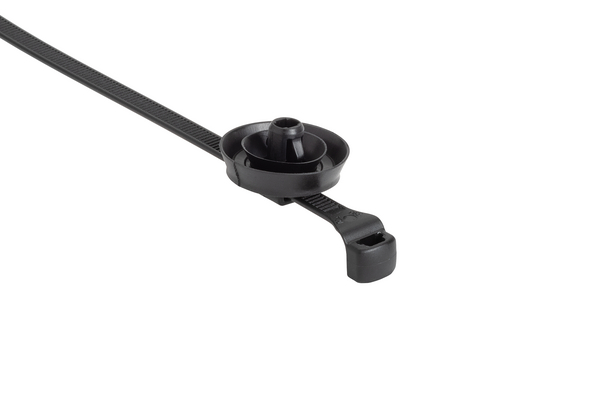

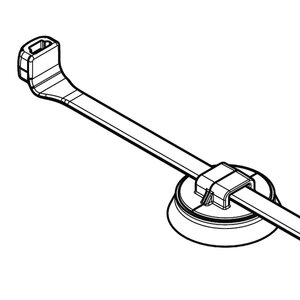

Fixing tie for hole (round), ∅5.0-50.0mm, black, 500pcs.
Art.-Nr. 156-03941 | LPT50RSRAH6.5SD-PA66HS/PA66HIRHSUV-BK |  Details

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions
    • Seal protects against splash water
    • Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION LPT50RSRAH6.5SD-PA66HS/PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes, sealed
    Product Group 2-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type LPT50RSRAH6.5SD
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 5.0-50.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 13.25mm
    Length (L) 194.6mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 1.1mm
    Strap Width max. (G) 0.2
    Strap Width max. (G) 5.08mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
    for Panel Thickness min - max 0.6 - 1.1 mm
    for Panel Thickness min - max 0 - 0 "
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026696225
    Packaging 1 - Qty 500
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
