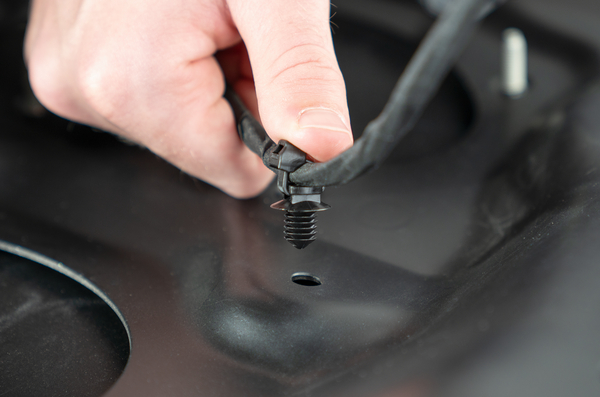

Fixing tie for hole (round), ∅16mm, black, 500pcs.
Art.-Nr. 156-00787 | REZ200FT8-PA66/PA66HS-BK |  Details

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6 (PA66), Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION REZ200FT8-PA66/PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT8
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Type REZ200FT8
    Bundle ∅ 16mm
    Bundle ∅ min. 16mm
    Cable Tie Head Height (metric) 15.5mm
    Cable Tie Head Length (metric) 12.2mm
    Cable Tie Head Width (metric) 8.1mm
    Length (L) 200mm
    Width (W) 4.7mm
    Width (W2) 16mm
    for Hole ∅ (FH) 8.0 mm
    for Panel Thickness min - max 0.8 - 6 mm
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    GTIN-13 / EAN 4031026428369
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
