Fixing tie for hole (round), inside serrated, ∅6.0-50.0mm, black, 1000pcs.
Art.-Nr. 115-06960 | RT50SFK-PA66-BK |  Details

1-Piece Fixing Tie for round holes with wings.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Releasable and therefor reusable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote

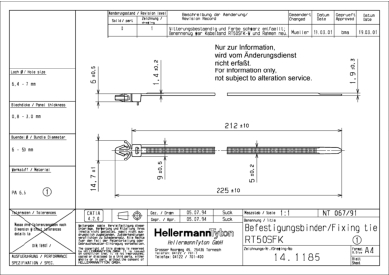

    Downloads CAD-Download
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Anti rotation (Yes / No) NO
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RT50SFK-PA66-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family for round holes, releasable
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings, releasable
    Releasable Closure (Yes/No) Yes
    Short Description Fixing Tie 225x5.0 black
    Type RT50SFK
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 6.0-50.0mm
    Bundle ∅ min. 6.0mm
    Height (H) 6mm
    Length (L) 225mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.8 - 3.0mm
    Thickness (T) 1.4mm
    Weight/Unit 0.001993kg
    Width (W) 5.0mm
    Width (W2) 14.7mm
    for Hole ∅ (FH) 6.4 - 7.0 mm
    for Panel Thickness min - max 0.8 - 3 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026108520
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.36m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0094m³
    Packaging 1 - Weight (kg) 2.022135kg
    Packaging 1 - Width (m) 0.29m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.95281kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 176.424kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
