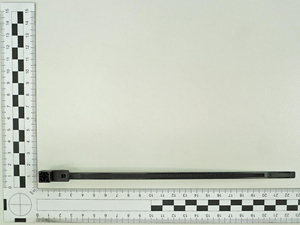

Fixing tie for stud, inside serrated, ∅3.0-40.0mm, black, 500pcs.
Art.-Nr. 131-60060 | SBR5-PA66HS-BK |  Details

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote

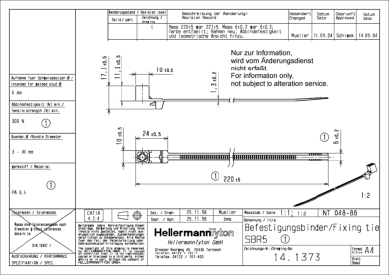

    Downloads CAD-Download
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION SBR5-PA66HS-BK
    Pack Cont. 500pcs.

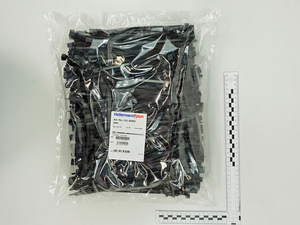

    Package Content packed in bag
    Product Family 1-Piece Fixing Ties for Weld Studs (Hardpush), Releasable
    Product Group 1-Piece Fixing Ties for Weld Studs (Hardpush), Releasable
    Releasable Closure (Yes/No) Yes
    Short Description 1-Piece Fixing Tie for Weld Studs , releasable, PA66HS, 220x6.0 black
    Tie Closure plastic pawl
    Type SBR5
    Variant Inside Serrated
    Bundle Diameter max (metric) 40.0mm
    Bundle ∅ 3.0-40.0mm
    Bundle ∅ min. 3.0mm
    Height (H) 1.3mm
    Height (H2) 17.3mm
    Length (L) 220mm
    Max Stud Length 9.0mm
    Min.Tensile Strength 300N
    Stud ∅ 5.0 mm
    Thickness (T) 1.3mm
    Weight/Unit 0.00256kg
    Width (W) 6.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026115641
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 1.309135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.91135kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 187.92kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
