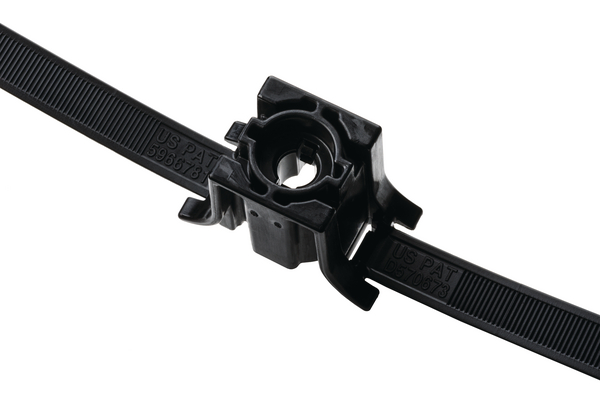

Fixing tie for stud, ∅9.5-86.4mm, black, 250pcs.
Art.-Nr. 157-00060 | SDCTL-PA66HIRHSUV-BK |  Details

Nut or weld nesting counterbore provides flush mounting at the base

    • Wide strap minimizes pinching of soft hoses and convoluted tubing.
    • Clamping rails increase circumferential grip on varying bundle diameters.
    • Locking stud mount pawls allow for easy hand insertion.
    • Nut or weld nesting counterbore provides flush mounting at the base.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Description Stand Off Dual Clamp Ties offer the same features as the standard dual clamp tie, with a standoff mount that secures the bundle away from the side of the frame rail. This protects the bundles from bolts and other protrusions.
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SDCTL-PA66HIRHSUV-BK
    Pack Cont. 250pcs.
    Package Content packed in bag
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type SDCTL
    Bundle Diameter max (metric) 86.4mm
    Bundle ∅ 9.5-86.4mm
    Bundle ∅ min. 9.5mm
    Height (H) 37.30mm

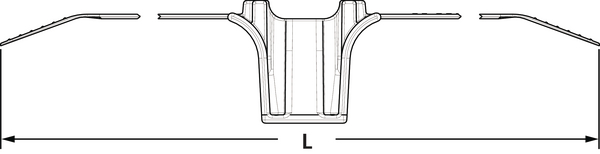

    Length (L) 663.0mm
    Min.Tensile Strength 445N
    Stud ∅ 5/16"
    Stud ∅ M8

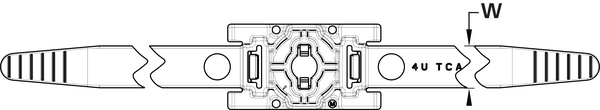

    Width (W) 12.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026415635
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
