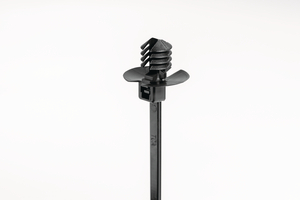

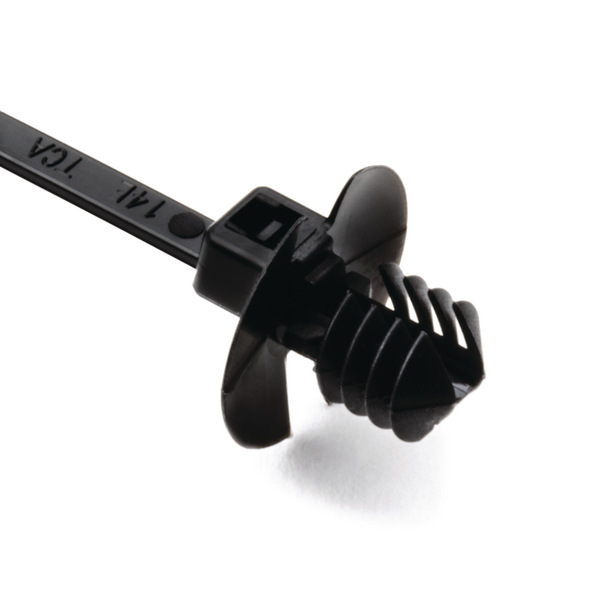

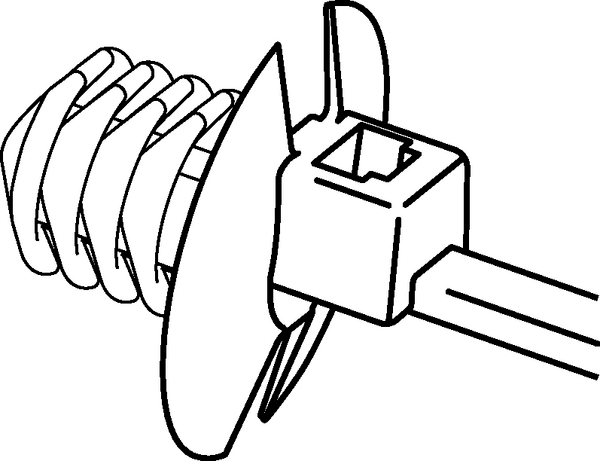

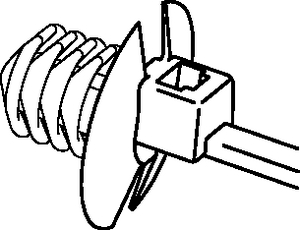

Fixing tie for hole (round), inside serrated, ∅1.5-20.0mm, black, 500pcs.
Art.-Nr. 150-55610
| T18RDP5-PA66-BK
|
Details
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer. |
| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | T18RDP5-PA66-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | pcs. |
| Product Family | Fir tree parts FT5 |
| Product Group | 1-piece fixing ties with fir tree, with disc, for round holes |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Fir Tree and Disc PA66 110x2.5 black |
| Tie Closure | plastic pawl |
| Type | T18RDP5 |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 20.0mm |
| Bundle ∅ | 1.5-20.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 13.0mm |
| Length (L) | 110.0mm |
| Length of Fir Tree | 7.8mm |
| Min.Tensile Strength | 80N |
| Panel Thickness max. | 3.0 - 4.0mm |
| Thickness (T) | 1.1mm |
| Weight/Unit | 0.000414kg |
| Width (W) | 2.5mm |
| for Hole ∅ (FH) | 4.9 - 5.1 mm |
| for Panel Thickness min - max | 3 - 4 mm |
| for Panel Thickness min - max | 0.1 - 0.2 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Nato number | 5975-12-380-9843 |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660320224 |

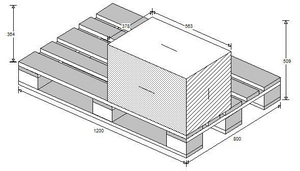

| Packaging 1 - Height (m) | 0.106m |
| Packaging 1 - Length (m) | 0.249m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00486m³ |
| Packaging 1 - Weight (kg) | 0.207001kg |
| Packaging 1 - Width (m) | 0.184m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 12000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 5.929024kg |
| Packaging 3 - Width (m) | 0.379m |

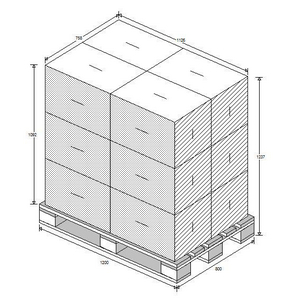

| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 144000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 92.148kg |
| Packaging 4 - Width (m) | 0.8m |
