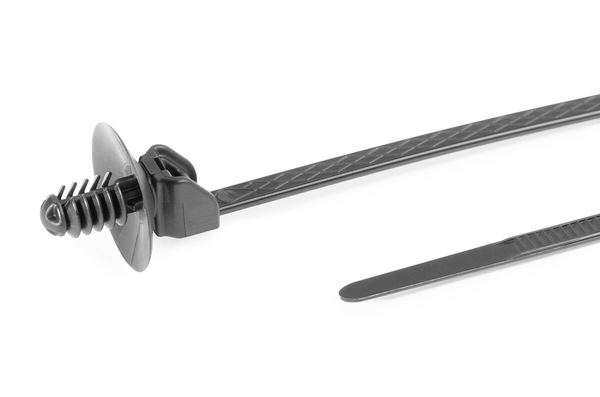

Fixing tie for hole (round), outside serrated, ∅25.0mm, black, 1000pcs.
Art.-Nr. 157-00464 | T30SOS-AS-FT5-E-PA66HS-BK |  Details

Fir tree foot parts can be used for a variety of panel thicknesses.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Parts with an anti-slip engraving, such as the T30SOS-AS-FT5-E, to prevent the harness from slipping sideways
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Key product features products for automatic tools
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T30SOS-AS-FT5-E-PA66HS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT5
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl

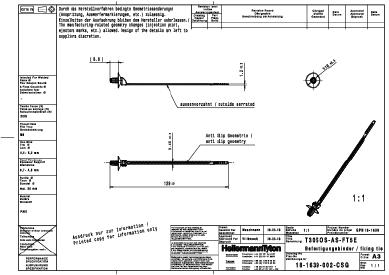

    Type T30SOS-AS-FT5-E
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 25.0mm
    Disc ∅ 16.0mm
    Length (L) 129.0mm
    Length (L2) 8.6mm
    Min.Tensile Strength 200N
    Thickness (T) 1.2mm
    Weight/Unit 0.000875kg
    Width (W) 3.45mm
    for Hole ∅ (FH) 4.8 - 5.2 mm, M6
    for Panel Thickness min - max 0.7 - 4.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026625034
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.495m

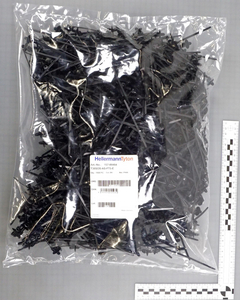

    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01693m³
    Packaging 1 - Weight (kg) 0.909kg
    Packaging 1 - Width (m) 0.38m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.092kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 118.104kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
