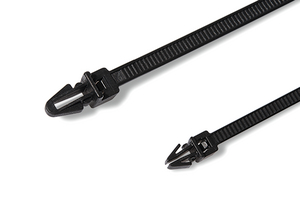

Fixing tie for hole (round), inside serrated, ∅32mm, black, 100pcs.
Art.-Nr. 126-00051 | T30RSF-PA66W-BK |  Details

Fixing tie for round holes with Arrowhead.

    • Easy to assemble without the need for a tool
    • Fixing tie with arrowhead without wings
    • Arrowhead simply locks into place
    • Cable tie head always situated in defined position
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The arrowhead design is usefull in areas with limited space.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION T30RSF-PA66W-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family without wings and disc, for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30RSF
    Variant Inside Serrated
    Bundle Diameter max (metric) 32mm
    Bundle ∅ 32mm
    Length (L) 158.0mm
    Min.Tensile Strength 135N
    Panel Thickness max. 0.9 – 2.4mm
    Width (W) 3.6mm
    for Hole ∅ (FH) 4.7 - 5.6 mm
    for Panel Thickness min - max 0.9 - 2.4 mm
    for Panel Thickness min - max 0 - 0.1 "
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
