19/11/2024

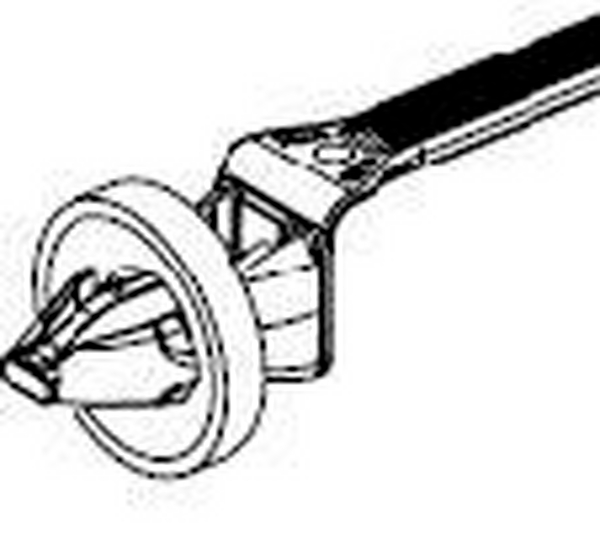

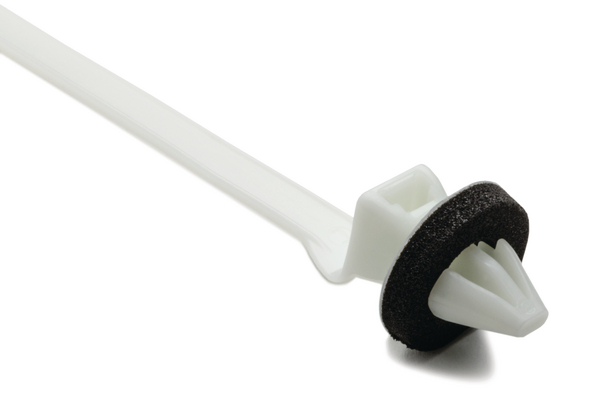

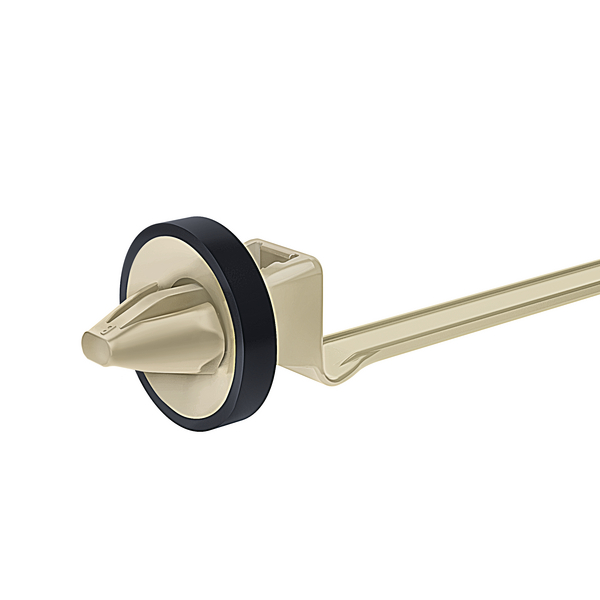

Fixing tie for hole (round), outside serrated, ∅1.6-50.0mm, natural, 500pcs.
Art.-Nr. 156-00444 | T50ROSAH6MDU-PA66HIRHS-NA |  Details

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
    • Cable tie head always situated in a defined position
    • KSFT-types with specially rounded arrowhead minimise the assembly height
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSAH6MDU-PA66HIRHS-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSAH6MDU
    Variant Outside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.6-50.0mm
    Bundle ∅ min. 1.6mm
    Disc ∅ 16.0mm
    Length (L) 216.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.8 - 2.1mm
    Weight/Unit 0.01kg
    Width (W) 5.0mm
    for Hole ∅ (FH) 6.2 - 6.6 mm
    for Panel Thickness min - max 0.8 - 2.1 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026416458
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 5.000001kg

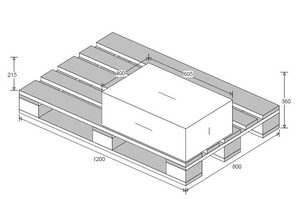

    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 30.095006kg
    Packaging 3 - Width (m) 0.39688m

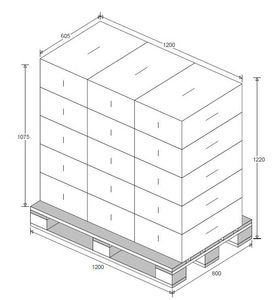

    Packaging 4 - Height (m) 1.254m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 45000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.204m³
    Packaging 4 - Weight (kg) 472.425kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
