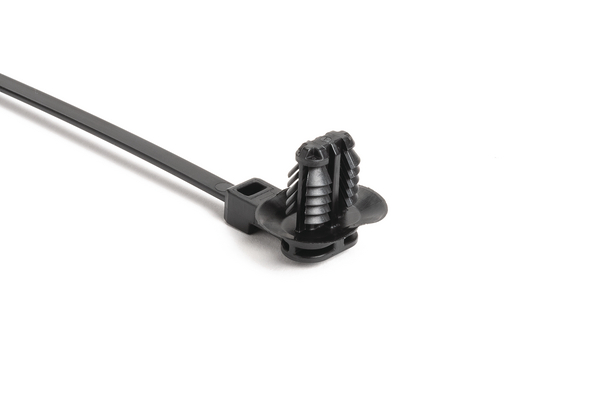

Fixing tie for hole (oval), ∅2.0-50.0mm, black, 100pcs.
Art.-Nr. 157-00429 | T50ROSFTOVAL12.5B-PA66HIRHSUV-BK |  Details

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    • 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFTOVAL12.5B-PA66HIRHSUV-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family with offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes
    Releasable Closure (Yes/No) No
    Type T50ROSFTOVAL12.5B
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 17.63 x 23.63mm
    Fixing Hole Shape Oval
    Height (H) 1.35mm
    Length (L) 216.81mm
    Length (L2) 13.15mm
    Min.Tensile Strength 225N
    Offset Length 12.5mm
    Panel Thickness max. 0.6 - 6.75mm
    Width (W) 4.7mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026726250
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.29209999999999997m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
