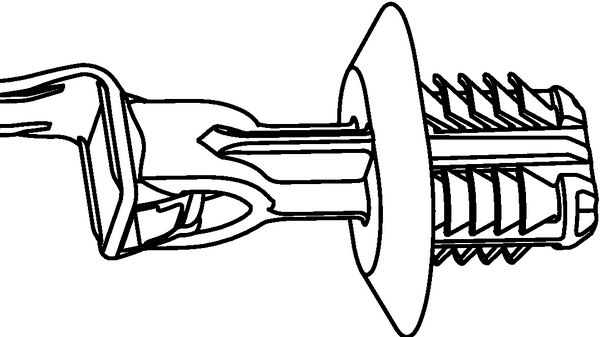

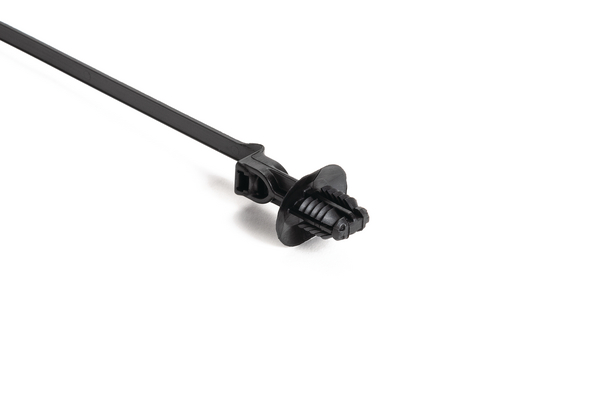

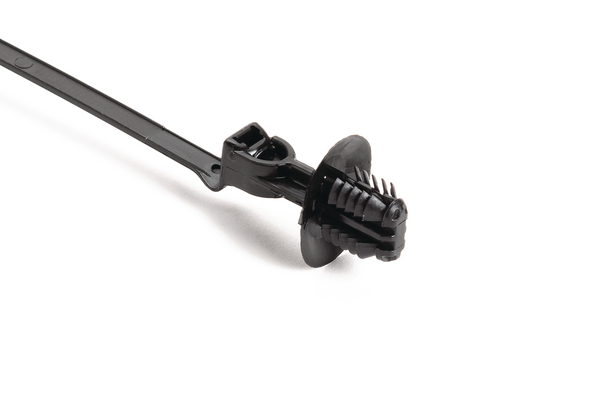

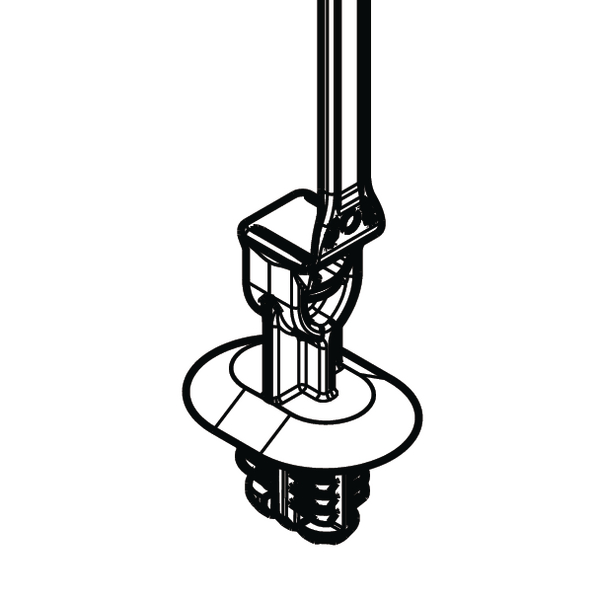

Fixing tie for hole (oval), outside serrated, ∅2.0-50.0mm, black, 500pcs.
Art.-Nr. 157-00379 | T50ROSFTOVALIL125SO-PA66HIRHSUV-BK |  Details

The fir tree mount cable tie is an all-in-one bundling and fastening solution that reduces costs and assembly time.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    • 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFTOVALIL125SO-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in carton
    Product Family with offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 164x4.6 mm, with fir tree and disc, with offset, for oval holes, high impact modified, heat and UV-stabilised, black
    Type T50ROSFTOVALIL125SO
    Variant Outside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Fixing Hole Shape Oval
    Length (L) 164.0mm
    Length (L2) 12.5mm
    Min.Tensile Strength 225N
    Offset Length 12.5mm
    Panel Thickness max. 0.6 - 6.75mm
    Weight/Unit 0.0027kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026645247
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.350001kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 6.170004kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 113.55kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
