19/11/2024

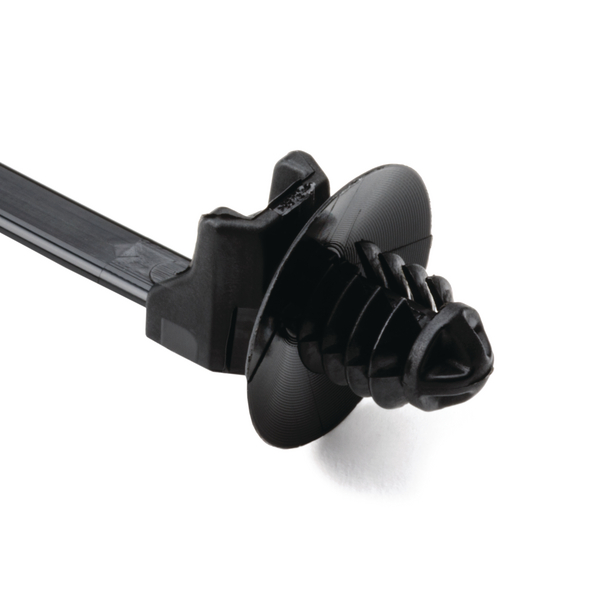

Fixing tie for hole (round), outside serrated, ∅1.6-32.0mm, natural, 500pcs.
Art.-Nr. 157-00156 | T50SOSFT6E-PA66HS-NA |  Details

Fir tree foot parts can be used for a variety of panel thicknesses.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Natural (NA)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Key product features products for automatic tools
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSFT6E-PA66HS-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSFT6E
    Variant Outside Serrated
    Bundle Diameter max (metric) 32.0mm
    Bundle ∅ 1.6-32.0mm
    Bundle ∅ min. 1.6mm
    Length (L) 160mm
    Min.Tensile Strength 150N
    Width (W) 4.7mm
    for Hole ∅ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 0.8 - 3 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026459202
    Packaging 1 - Weight (kg) 2.0kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
