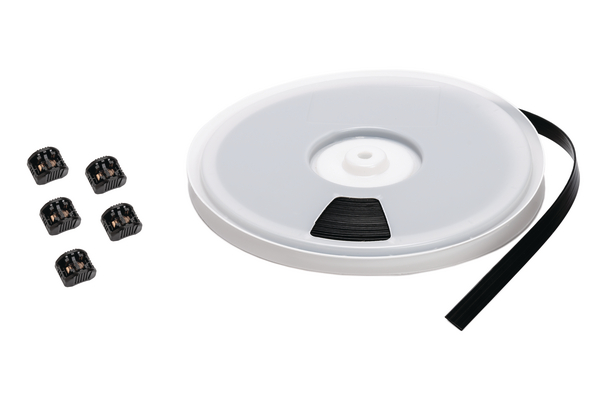

Cable tie endless, 15.2mx12.8mm, black, 1
Art.-Nr. 111-30001 | TELS-1-H3-POM/POMUVCU-BK |  Details

    • Made of very strong Polyacetal (POM)
    • System consists of endless strap, spacers and heads
    • Head includes stainless steel pawls for a proper fixation
    • Very secure fixing and good resistance to ageing and UV light
    • Suits any bundle diameter and reduces inventory
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These robust cable ties are particularly suitable for use with larger diameter cables, pipes and hoses. Designed originally for securing overhead catenary and cables, they are now used in many industries from the building sector, through to the chemical industry, to the installation of signs for traffic management. Separate spacers allow for a defined distance when bundling in parallel.
    Cable Tie Polyacetal (POM)
    Colour Black (BK)
    Fixation Method Cable Tie
    Identification Plate Position none
    Material Polyacetal (POM), Polyacetal, UV-stabilised with copper pawl (POMUVCU)
    Material Head Polyacetal, UV-stabilised with copper pawl (POMUVCU)
    PART DESCRIPTION TELS-1-H3-POM/POMUVCU-BK
    Pack Cont. 1
    Package Content packed in kit
    Product Family EL-TY-Series
    Product Group Endless cable ties with separate head and spacer
    Releasable Closure (Yes/No) No
    Tie Closure copper alloy pawl
    Type TELS-1-H3
    Variant Endless
    Cable Tie Head Height (metric) 12.4mm
    Cable Tie Head Length (metric) 21.5mm
    Cable Tie Head Width (metric) 18.7mm
    Length (L) 15.2m
    Min.Tensile Strength 1115N
    Strap Width max. (G) 0.5"
    Strap Width max. (G) 0.73"
    Strap Width max. (G) 12.8mm
    Thickness (T) 1.50mm
    Width (W) 12.8mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +85 °C
    Operating Temperature Head (Metric) -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin JP
    GTIN-13 / EAN 4031026748535
    Packaging 1 - Qty 1
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
    Cable Ties and Fixings Cable Ties and Fixings

    Cable Ties and Fixings

    Cable ties have to be able to meet the most varied demands these days as they are used in the widest range of operations – from the simple bundling of cables with cable ties to the absolutely specific use of cable ties under extreme conditions.

    Cable Ties >
    Cable clips Cable clips

    Cable clips for industrial applications

    From adhesive cable clips to wire clips for parallel routing or fluid management: Discover our product portfolio here.

    Cable clips >

    Cable clips for edges: fasten cables without drilling

    The EdgeClip is a cable-fastening solution that enables the flexible routing of wires, cable harnesses, conduits and pipes in a variety of industrial applications, including the automotive sector.

    Cable clips for edges >
