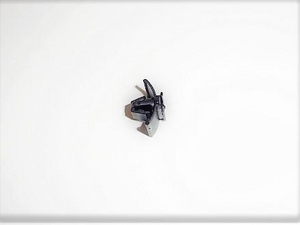

Connector clip for hole (oval), black, 500pcs.
Art.-Nr. 151-02269 | CCIISFT6.5x13-PA66HIRHS-BK |  Details

ConnectorClip for oval holes 6.5x13 mm with wings, in line.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCIISFT6.5x13-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family With Arrowhead
    Product Group Connector Clips for Oval Holes
    Short Description Connector Clip for oval holes, black
    Type CCIISFT6.5x13
    Height (H) 13.2mm
    Length (L) 19.6mm
    Panel Thickness max. 0.7 - 3.0mm
    Weight/Unit 0.001002kg
    Width (W) 14.5mm
    for Hole ∅ (FH) 6.5 x 13.0 mm
    for Panel Thickness min - max 0.7 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026290744
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.514862kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 13500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 14.721274kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 162000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 197.7kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
