P-clamp short, Dmin=19.4mm, Dmax=36.0mm, ∅8.4 mm, 180°, black, 160pcs.
Art.-Nr. 151-03014 | RCC180SM8-PA666V0/ST/ZN-BK Details

  • Ratchet P-Clamp C-Series for bundle diameters from 19.4 mm to 36.0 mm
  • One-piece ratchet closure design allows for easy installation during pre- or final assembly
  • Multiple configurations handle a wide range of diameters and applications, reducing part inventory
  • Clamp interior is designed to guide and center bundle to reduce pinching
  • Easy release feature allows for quick adjustments and maintenance
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
  • Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Show more

Request your individual offer now

Application The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour Black (BK)
Fixation Method Screw Mounting
Key product features removable, releasable, vibration absorbing, for multiple routing
Material Polyamide 6.6/6, V0 (PA666V0), Steel (ST), Zinc plated (ZN)
PART DESCRIPTION RCC180SM8-PA666V0/ST/ZN-BK
Pack Cont. 160pcs.
Package Content packed in bag
Product Family For bundle diameters from 19.4 mm to 36.0 mm, C-Series
Product Group Ratchet P-Clamp
Type RCC180SM8
Variant Short
Angle 180
Bundle Diameter max (metric) 36.0mm
Bundle ∅ 19.4-36.0mm
Bundle ∅ min. 19.4mm

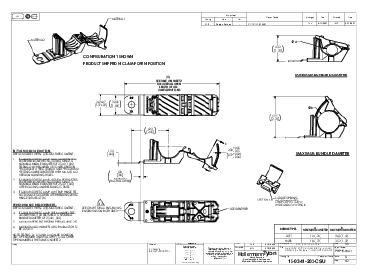

Fixing Hole Centres (F) 2.45"
Fixing Hole Centres (F) 62.3mm
Length (L) 156.1mm
Length (L2) 103.0mm
Min.Tensile Strength 445N
Stud ∅ M8
Width (W) 34.9mm
Width (W2) 30.0mm
for Hole ∅ (FH) 8.4 mm
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogen-free Yes
Limited Fire Hazard Yes
Operating Temperature -40 °C to +120 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
Specifications ASTM 1354, ASTM E 162, ASTM E 662
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin US
GTIN-13 / EAN 4031026628110
Packaging 3 - Height (m) 0.2159m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Width (m) 0.396875m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
