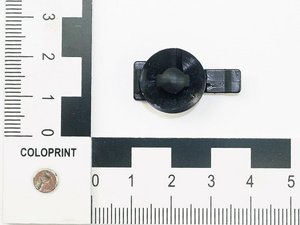

Connector clip for hole (round), EWCAP-005-11, black, 500pcs.
Art.-Nr. 151-01870 | YCCKSFT6.5-PT1.7-2.3-PA66HIRHS-BK |  Details

ConnectorClip for round holes with rounded arrow head.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Arrowhead (Small Mount)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION YCCKSFT6.5-PT1.7-2.3-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family With Arrowhead
    Product Group Connector Clips for round holes

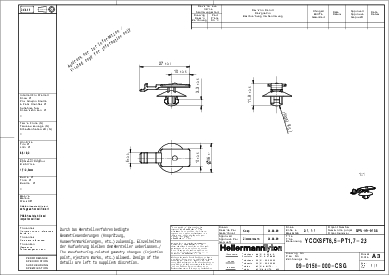

    Type YCCKSFT6.5-PT1.7-2.3
    Disc ∅ 16.0mm
    Fixing Hole Shape Circular
    Height (H) 11.9mm
    Length (L) 27.0mm
    Panel Thickness max. 1.7 - 2.3mm
    Weight/Unit 0.000715kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 1.7 - 2.3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026576510
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m

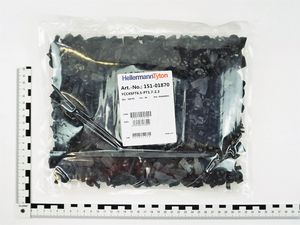

    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.371362kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 8.07724kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 182.6kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
