Cable tie mount for hole (round), Wmax=9.0mm, ∅7.0 - 8.0 mm, black, 100pcs.
Art.-Nr. 151-80600 | LOK01S-PA6HIR-BK |  Details

LOK01, LOK01B, LOK01S fixing bases.

    • LOK01 – LOK05 usable with any cable ties up to 9 mm wide
    • Suitable for a wide range of materials, including concrete, brick, block and wood

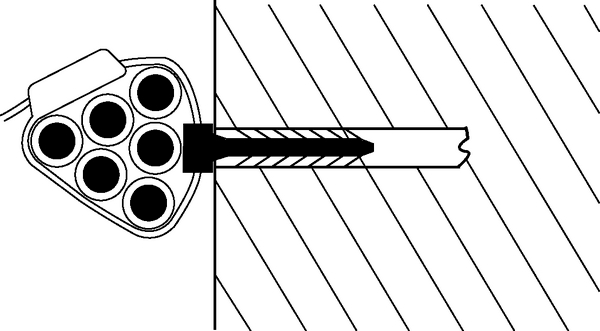

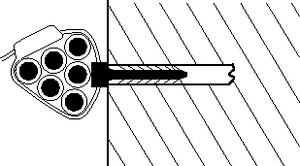

    • Installed by knocking into 7 mm or 8 mm diameter hole
    • LOK01B is designed for soft brickwork and 6 mm holes
    • Elongated head of LOK05 for setting bundles at a distance from brickwork
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The LOK mounts, in conjunction with a cable tie, can be used either indoors or outdoors for a diverse range of applications from holding climbing plants, to securing cables running between buildings.
    Colour Black (BK)
    Fixation Method with Fir Tree (Mounts)
    Material Polyamide 6, high impact modified (PA6HIR)
    PART DESCRIPTION LOK01S-PA6HIR-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family LOK-Series
    Product Group Fixing base
    Short Description Wall-plug PA6HIR 34.0x12.0 black
    Type LOK01S
    Diameter (D) 9.2mm
    Length (L) 34.0mm
    Length (L2) 6.5mm
    Length (L3) 2.5mm
    Strap Width max. (G) 9.0mm
    Weight/Unit 0.002kg
    Width (W) 12.0mm
    for Hole ∅ (FH) 7.0 - 8.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 5022660311161
    Packaging 1 - Height (m) 0.038m
    Packaging 1 - Length (m) 0.18m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00109m³
    Packaging 1 - Weight (kg) 0.2kg
    Packaging 1 - Width (m) 0.16m
    Packaging 2 - Height (m) 0.35m
    Packaging 2 - Length (m) 0.58m
    Packaging 2 - Qty 6000
    Packaging 2 - Type carton
    Packaging 2 - Volume (m³) 0.0751m³
    Packaging 2 - Weight (kg) 12.0kg
    Packaging 2 - Width (m) 0.37m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
