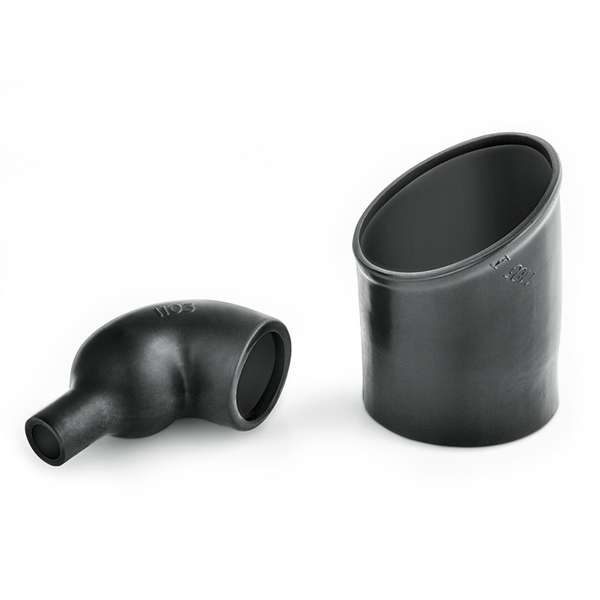

Right-Angle Shapes, MIL style
Art.-Nr. 411-01065 | 1101-52-L-FPMX-BK |  Details

1108-4 supplied / fully recovered.

    • Used in conjunction with a circular grooved adaptor for strain relief
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoropolymer, cross-linked (FPMX)
    PART DESCRIPTION 1101-52-L-FPMX-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, MIL style
    Type 1101-52-L
    Variant For plug
    Angle 90
    Flexibility semi rigid
    HW ± 20 % 2.0mm
    JW ± 30 % 2.0mm
    M nom. 27.9mm
    P ± 10 % 53.3mm
    R ± 10 % 43.2mm
    S nom. 15.7mm
    T ± 20 % 1.7mm
    V max. 3.3mm
    ∅H max. b 27.9mm
    ∅H min. a 42.7mm
    ∅J max. b 9.7mm
    ∅J min. a 22.1mm
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660695667
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0012m³
    Packaging 1 - Weight (kg) 0.017kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
    Show all
    Heat shrink tubing Heat shrink tubing

    Heat shrink tubing

    You are looking for the heat shrink tubing meeting your application requirements best? The key factors to which we owe our success are the unique and quite specific properties of our heat shrink tubing.
