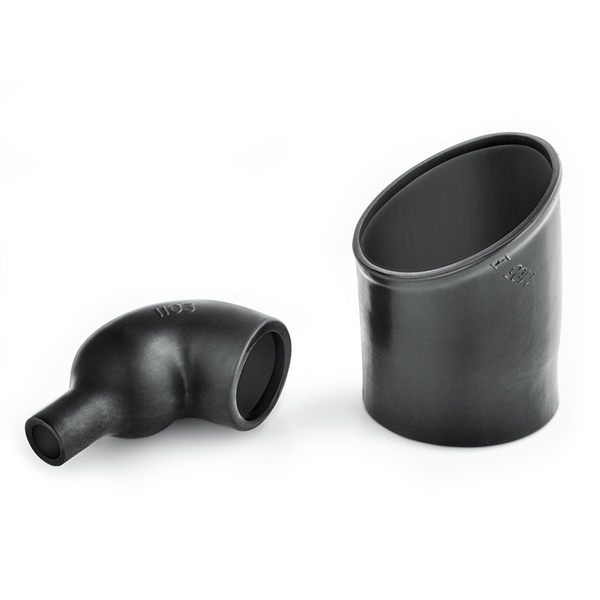

Right-Angle Shapes, MIL style
Art.-Nr. 411-04035 | 1104-4-J-PO-X-BK |  Details

1108-4 supplied / fully recovered.

    • Used in conjunction with a circular grooved adaptor for strain relief
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1104-4-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, MIL style
    Type 1104-4-J
    Variant For plug
    Angle 90
    Flexibility Flexible
    HW ± 20 % 1.8mm
    JW ± 30 % 1.8mm
    M nom. 20.6mm
    P ± 10 % 35.6mm
    R ± 10 % 30.5mm
    S nom. 8.6mm
    T ± 20 % 1mm
    V max. 3.3mm
    Weight/Unit 0.006kg
    ∅H max. b 17.8mm
    ∅H min. a 30.9mm
    ∅J max. b 7.1mm
    ∅J min. a 30.9mm
    Dielectric Strength 18kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-00-281-3926
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660408632
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00077m³
    Packaging 1 - Weight (kg) 0.006kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
