Right-Angle Shapes, MIL style
Art.-Nr. 411-08019 | 1108-5-L-FPMX-BK |  Details

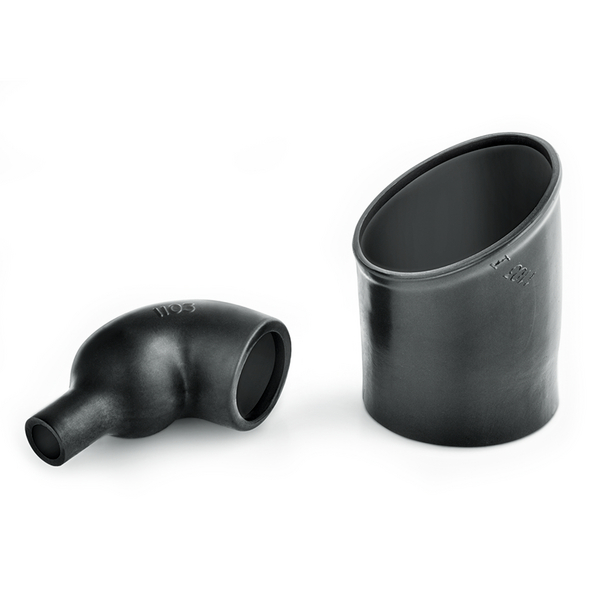

1108-4 supplied / fully recovered.

    • Used in conjunction with a circular grooved adaptor for strain relief
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoroelastomer, cross-linked (FPMX)
    PART DESCRIPTION 1108-5-L-FPMX-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, MIL style
    Type 1108-5-L
    Variant For plug
    Angle 90
    Flexibility Flexible
    HW ± 20 % 1mm
    JW ± 30 % 1.6mm
    P ± 10 % 18.3mm
    R ± 10 % 20.1mm
    S nom. 5.1mm
    T ± 20 % 1mm
    ∅H max. b 7.9mm
    ∅H min. a 16.5mm
    ∅J max. b 2.5mm
    ∅J min. a 7.6mm
    Dielectric Strength 9kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660410543
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
