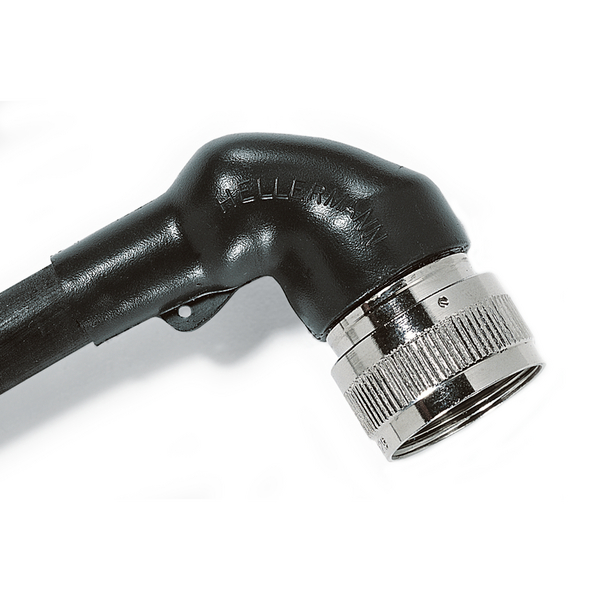

Right-Angle Shapes, VG style
Art.-Nr. 411-58021 | 1158-6-L-FPMX-BK Details

  • Used in conjunction with a circular grooved adaptor
  • Provides strain relief and an environmental seal

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Fluoroelastomer, cross-linked (FPMX)
PART DESCRIPTION 1158-6-L-FPMX-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, VG style
Type 1158-6-L
Variant For plug
Angle 90
Flexibility Flexible
HW ± 30 % 3.3mm
JW ± 30 % 1.5mm
P ± 20% 101mm
R ± 10 % 54mm
S nom. 30mm
T ± 20 % 1.7mm
V max. 3.3mm
Weight/Unit 0.066kg
∅H max. b 35mm
∅H min. a 60mm
∅J max. b 16mm
∅J min. a 39mm
Dielectric Strength 9kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Halogen-free Yes
Min. Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +200 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660667794
Packaging 1 - Height (m) 0.070m
Packaging 1 - Length (m) 0.200m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00182
Packaging 1 - Weight (kg) 0.066001kg
Packaging 1 - Width (m) 0.130m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
