Thick-walled speedpipe ground single ducts in connection: SRV-G
Art.-Nr. 872-00024 | SRV-G_40/3x16-PE-HD-OG |  Details

speedpipe bundles ground SRV-G for in-duct installations.

    Add to watchlist

    Request your individual offer now

     Request quote

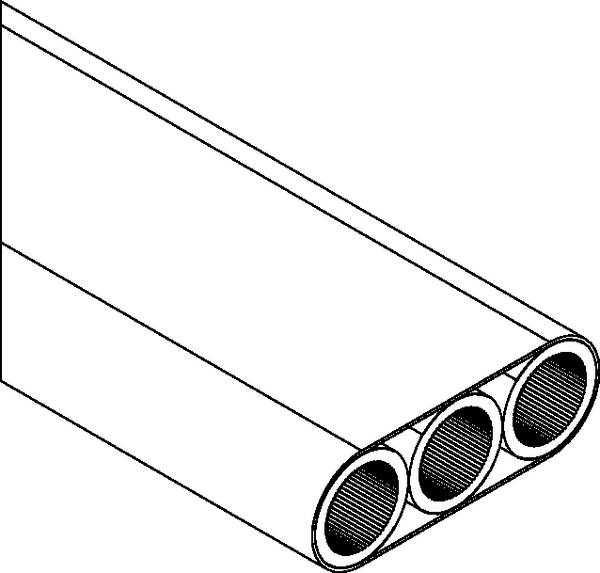

    Application The speedpipe bundles ground SRV-G consist of varicoloured speedpipe ground which are bundled by a flexible jacket pipe. The speedpipe bundle ground can be pulled into existing PE-HD ducts for ensuring maximum occupation.
    Colour Orange (OG)
    Description 3 speedpipe ground 16x2.0
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SRV-G_40/3x16-PE-HD-OG
    Pack Cont. 2100m
    Package Content packed in drum
    Product Family SRV-G 40/3x16
    Product Group thick-walled speedpipe ground single ducts in connection: SRV-G
    Type SRV-G_40/3x16
    Variant gabo
    Diameter (D) 40mm
    Length (L) 2100m
    Wall (WT) 0.5mm
    Weight/Unit 0.324kg
    Country of Origin DE
    GTIN-13 / EAN 4031051423124
    Packaging 1 - Height (m) 2.4m
    Packaging 1 - Length (m) 2.4m
    Packaging 1 - Qty 2100
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 6.912m³
    Packaging 1 - Weight (kg) 1030.4kg
    Packaging 1 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
