Arrowtag Plate 100x9 mm black
Art.-Nr. 151-41310 | AT3-PA66-BK |  Details

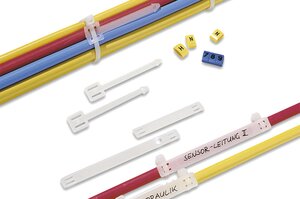

    • Blank nylon arrowhead shape plate fixed with a cable tie
    • Identify with a T82 pen or Ovalgrip markers
    • AT1 for 7 size 50 Ovalgrip markers
    • AT2 for 8 size 85 Ovalgrip markers
    • AT3 for 14 size 85 Ovalgrip markers
    • Custom printed plaques are available on request
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The plates are suitable for applying to larger pipes and cables before or after termination has taken place. They can be marked with Ovalgrip markers or manually using the T82 series of indelible markers pens.
    Colour Black (BK)
    Fixation Method Others
    Identification Plate Position attached to bundle
    Marker tiles per carrier 13
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION AT3-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Arrowtag
    Product Group Identification ties and plates for marking cable bundles
    Recommended Ovalgrip Size 85
    Short Description Arrowtag Plate 100x9 mm black
    Type AT3
    Variant Other
    With label space Yes
    Length (L) 100.0mm
    Print Method manual marking
    Strap Width max. (G) 6.40mm
    Weight/Unit 0.001121kg
    Width (W) 9.00mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660302114
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.225m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00068m³
    Packaging 1 - Weight (kg) 0.112101kg
    Packaging 1 - Width (m) 0.15m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Width (m) 0.39m
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
