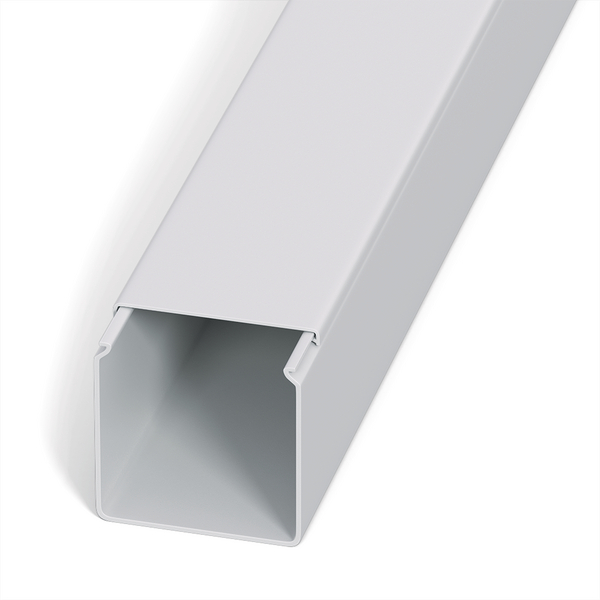

Wiring duct of air conditioning duct system in self-extinguishing rigid PVC
Art.-Nr. 250-00253 | AC8080-PVC-WH Details

  • Ideal for protection and aesthetics in the installation of air conditioning;
  • made with thermoplastic and self-extinguishing material;
  • Impact resistant;
  • Reduced installation time;
  • Allows the installation of air conditioning in various environments;
  • The accessories facilitate the installation, eliminating cutout of the wiring ducts;
  • Available in three wiring ducts models.
Show more

Request your individual offer now

Application The HelaClima wiring ducts are used for protection na aesthetics in the installation of air conditioning system such as pipes, thermal insulation, drain and electric cables. They are composed of base and cover with two meters lenght and are available in three different sizes: 30x30mm, 60x50mm and 80x80mm.
Colour White (WH)
Material Polyvinylchloride (PVC)
PART DESCRIPTION AC8080-PVC-WH
Pack Cont. 8pcs.
Package Content packed in box
Product Family HelaClima system in white PVC
Product Group Wiring duct of air conditioning duct system in self-extinguishing rigid PVC

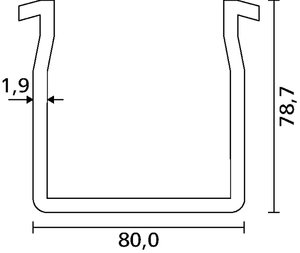

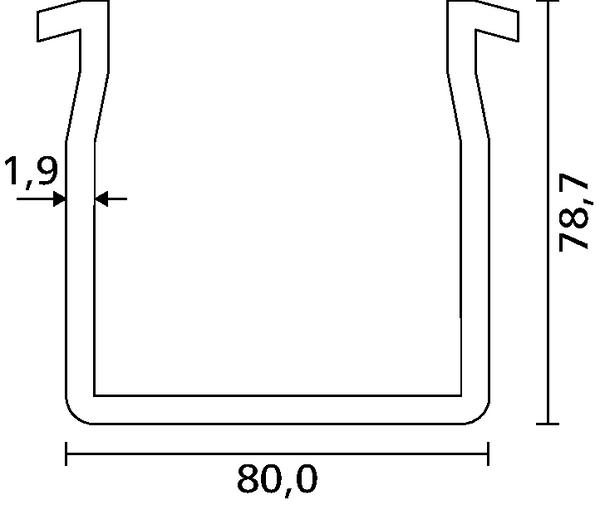

Type AC8080
Height (H) 78.7mm
Length (L) 2000mm
Wall (WT) 1.9mm
Width (W) 80.0mm
Flammability UL 94 V0
Operating Temperature -20 °C to +70 °C
ROHS compliant No
Country of Origin BR
Customs Number 3925902000
GTIN-13 / EAN 7890176083920
ETIM 7.0 Key EC000059
ETIM 8.0 Key EC000059
ETIM 9.0 Key EC000059
UNSPSC Key 39131712
