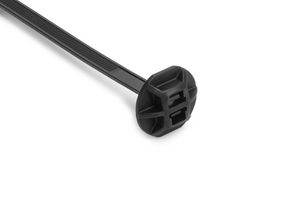

Cable tie outside serrated, 375x7.6mm, ∅100.0mm, black, 250pcs.
Art.-Nr. 150-47595 | BHT375M-PA66HS-BK |  Details

BHT375 - used for mounting cables via a single hole.

    • Both sides serrated cable tie
    • BHT-Series with round head for larger bearing area
    • BHT375 for centred position
    • CT- and LHT-Series with small squared head for restricted space areas
    • Tensioning with application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Fixing hole
    Identification Plate Position none
    Key product features for direct fixation
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Material Head Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION BHT375M-PA66HS-BK
    Pack Cont. 250pcs.
    Package Content packed in bag
    Product Family Chassis ties
    Product Group Cable ties for single hole application
    Releasable Closure (Yes/No) No
    Short Description Chassis Tie 375x7.6 mm, heat stabilised, black
    Tie Closure plastic pawl
    Type BHT375M
    Variant Outside Serrated
    Bundle Diameter max (metric) 100.0mm
    Bundle ∅ 100.0mm
    Height (H) 7.6mm
    Length (L) 375mm
    Min.Tensile Strength 700N
    Thickness (T) 1.5mm
    Weight/Unit 0.0038kg
    Width (W) 7.6mm
    for Hole ∅ (FH) 8.5 - 14.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    Customs Number 39269097
    GTIN-13 / EAN 4031026121062
    Packaging 1 - Height (m) 0.085m
    Packaging 1 - Length (m) 0.545m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02177m³
    Packaging 1 - Weight (kg) 0.99kg
    Packaging 1 - Width (m) 0.47m
    Packaging 3 - Height (m) 0.218m
    Packaging 3 - Length (m) 0.599m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0522m³
    Packaging 3 - Weight (kg) 4.71kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.234m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.185m³
    Packaging 4 - Weight (kg) 115.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
