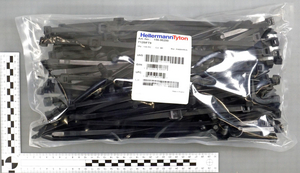

Fixing tie for hole (round), inside serrated, ∅8.0-80.0mm, black, 100pcs.
Art.-Nr. 156-00200 | T120IFT9-PA66HIR(S)-BK |  Details

These fir tree fixings can also be used in threaded, blind holes.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Application Method Can only be mounted with a tool, like a hammer.
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, scan black (PA66HIR(S))
    PART DESCRIPTION T120IFT9-PA66HIR(S)-BK
    Pack Cont. 100pcs.
    Package Content packed in carton
    Product Family Fir tree parts FT9
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Short Description 2-Piece fixing tie 150x4.6 mm, with fir tree, PA66HS/PA66HIRHS, black
    Tie Closure plastic pawl
    Type T120IFT9
    Variant Inside Serrated
    Bundle Diameter max (metric) 80.0mm
    Bundle ∅ 8.0-80.0mm
    Bundle ∅ min. 8.0mm
    Disc ∅ 20.0mm
    Height (H) 1.6mm
    Height (H2) 18.8mm
    Length (L) 300mm
    Length (L2) 15.0mm
    Min.Tensile Strength 535N
    Panel Thickness max. 5.0 - 11. 0mm
    Weight/Unit 0.005478kg
    Width (W) 7.6mm
    Width (W2) 15.0mm
    for Hole ∅ (FH) 9.0 - 10.6 mm
    for Panel Thickness min - max 5 - 11 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 5022660318337
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.33m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01109m³
    Packaging 1 - Weight (kg) 0.569793kg
    Packaging 1 - Width (m) 0.42m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.366895kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 18000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 133.404kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
