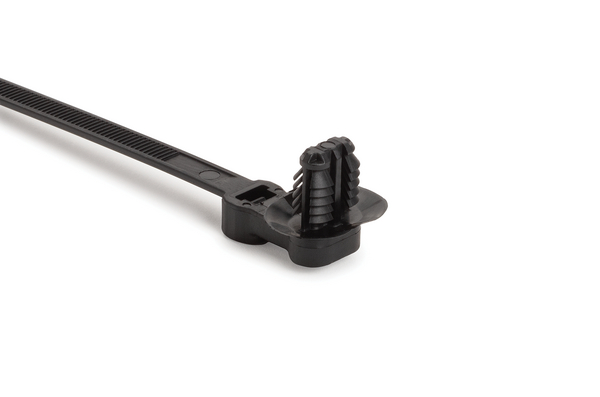

Fixing tie for hole (oval), ∅5.0-50.0mm, black, 1000pcs.
Art.-Nr. 157-04075
| T120SOSFTOVAL12.5A-PA66HIRHSUV-BK
|
Details
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
- 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
Request your individual offer now
Request quote
More products in this product group:
Colour | Black (BK) |
Fixation Method | Fir Tree for oval holes |
Identification Plate Position | none |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | T120SOSFTOVAL12.5A-PA66HIRHSUV-BK |
Pack Cont. | 1000pcs. |
Package Content packed in | carton |
Product Family | with offset 12.5 and 25.0 mm |
Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes |
Releasable Closure (Yes/No) | No |
Type | T120SOSFTOVAL12.5A |
Bundle Diameter max (metric) | 50.0mm |
Bundle ∅ | 5.0-50.0mm |
Bundle ∅ min. | 5.0mm |
Fixing Hole Shape | Oval |
Height (H) | 24.35mm |
Length (L) | 246.5mm |
Min.Tensile Strength | 535N |
Offset Length | 12.6mm |
Panel Thickness max. | 0.6 - 4.0mm |
Width (W) | 23.3mm |
for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
for Panel Thickness min - max | 0.6 - 4 mm |
for Panel Thickness min - max | 0 - 0.2 " |
Country of Origin | MX |
GTIN-13 / EAN | 4031026689395 |
Packaging 3 - Height (m) | 0.3635375m |
Packaging 3 - Length (m) | 0.5889625m |
Packaging 3 - Qty | 1000 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0612m³ |
Packaging 3 - Weight (kg) | 4.84kg |
Packaging 3 - Width (m) | 0.28575m |
Packaging 4 - Qty | 24000 |
Packaging 4 - Type | pallet |
