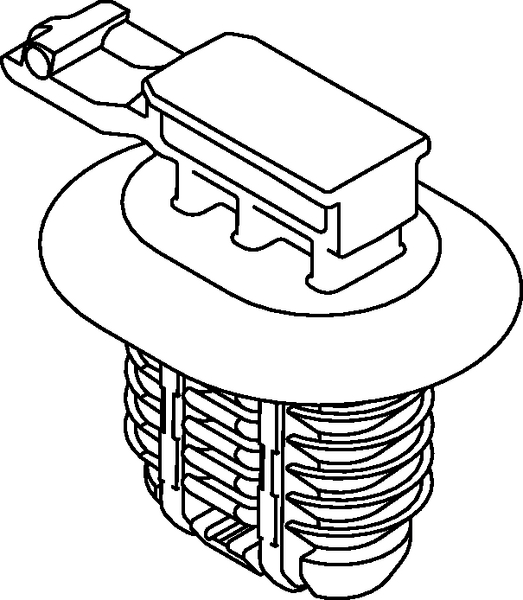

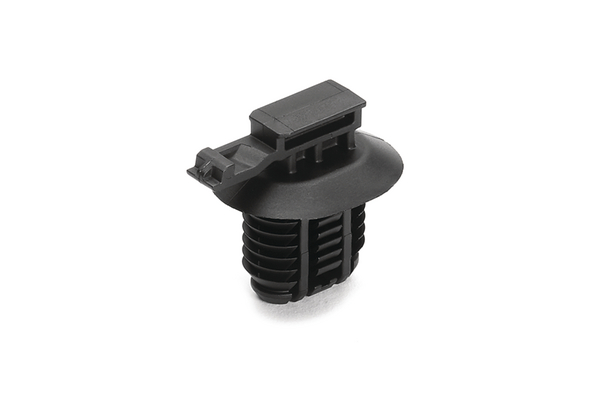

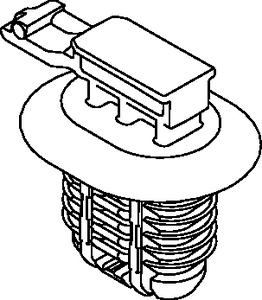

Connector clip, EWCAP-005-7, black, 2000pcs.
Art.-Nr. 151-01397 | CC20-PA66HIRHSUV-BK |  Details

Connector clip with fir tree includes clamping rails to provide full circumferential compression around bundles.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC20-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Type CC20
    Variant 9.0 x 17.0 mm
    Fixing Hole Shape Oval
    Height (H) 26.1mm
    Height (H2) 16.5mm
    Length (L) 25.5mm
    Min.Tensile Strength 155N
    Panel Thickness max. 0.6 - 9.5mm
    Weight/Unit 0.002495kg
    Width (W) 20.3mm
    for Hole ∅ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 9.5 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026529950
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.5m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03m³
    Packaging 1 - Weight (kg) 4.990001kg
    Packaging 1 - Width (m) 0.3m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 5.610001kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 133.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
