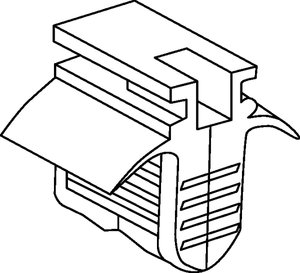

Connector clip for connector/for hole (oval), black, 500pcs.
Art.-Nr. 151-01358 | CCFT8X15-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCFT8X15-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Type CCFT8X15
    Height (H) 17.2mm
    Length (L) 17.2mm
    Panel Thickness max. 0.7-6.35mm
    Weight/Unit 0.00011kg
    for Hole ∅ (FH) 8.0 x 15.0 mm
    for Panel Thickness min - max 0.7 - 6.4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026519876
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.055kg
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 7000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 1.59kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 140000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 52.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
