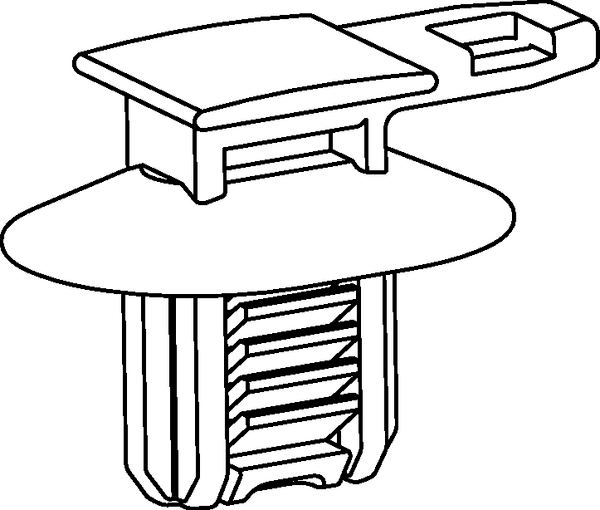

Connector clip for hole (oval), black, 3000pcs.
Art.-Nr. 151-02431 | CCDOP62x122-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCDOP62x122-PA66HIRHS-BK
    Pack Cont. 3000pcs.
    Package Content packed in box
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Type CCDOP62x122
    Height (H) 17.65mm
    Length (L) 20.5mm
    Width (W) 10.3mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 5 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C, (+125 °C, 500 h)
    Country of Origin FR
    GTIN-13 / EAN 4031026608907
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
