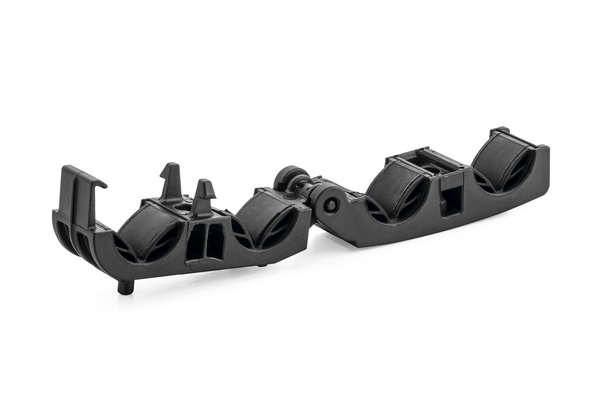

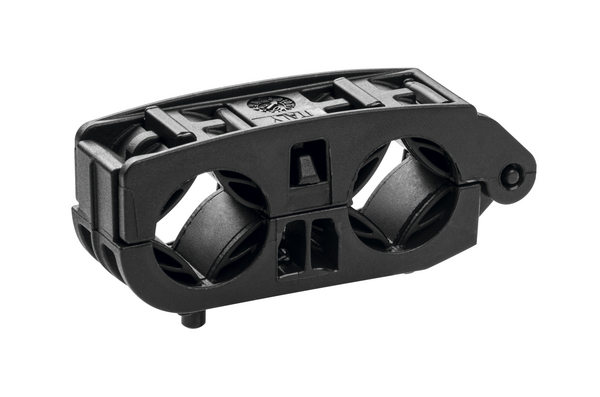

Cable clip for hole (round)/for stud, Dmin=14.0mm, Dmax=17.0mm, ∅M5
Art.-Nr. 151-03463 | CMP2W14-17-PA6HS/AEM-BK |  Details

Double high voltage clip in PA6HS / AEM with anti-rotation pin.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These clips are designed for the installation of high voltage cables in the automotive sector or electric vehicles in general, but can be used for any application requiring parallel wiring. The sturdy clip fixes and guides cables and corrugated conduits in a stable and optimal way, keeping the wiring parallel even in the presence of strong vibrations. The HV-Clips are available as CLP, CMP and CHP parts. The "L" stands for lower performance (EPDM), the "M" for medium performance (heat resistant + AEM) and the "H" for high performance (PA46 + AEM). The HV clips can also be produced with other material combinations or are already available.
    Colour Black (BK)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6, heat stabilised (PA6HS), Ethylene acrylate copolymer (AEM)
    PART DESCRIPTION CMP2W14-17-PA6HS/AEM-BK
    Pack Cont. 250pcs.
    Package Content packed in box
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type CMP2W14-17
    Bundle Diameter max (metric) 17.0mm
    Bundle ∅ 14.0-17.0mm
    Bundle ∅ min. 14.0mm
    Height (H) 31.7mm
    Length (L) 75.1mm
    Stud ∅ M5
    Width (W) 20.4mm
    Country of Origin IT
    GTIN-13 / EAN 4031026666075
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
