Cable clip for hole (round)/for stud, Dmin=20.0mm, Dmax=24.0mm
Art.-Nr. 151-03414 | CHP2W20-24NA-PA46-OG |  Details

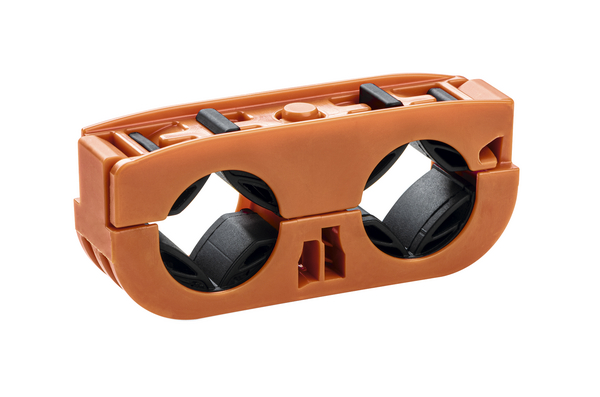

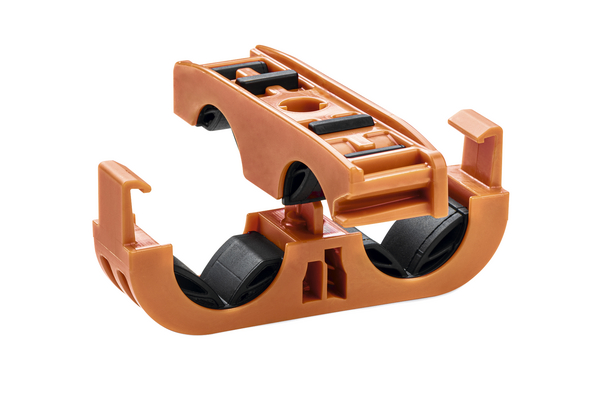

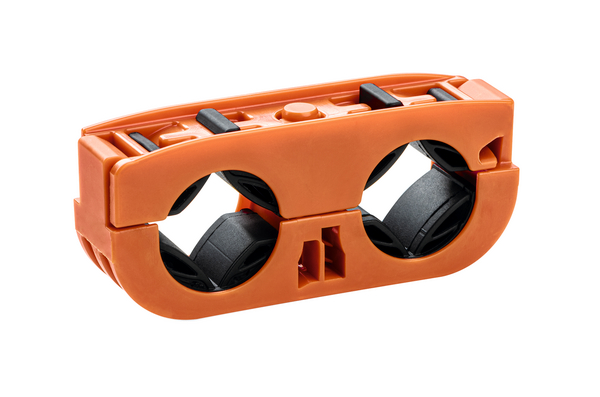

Double high voltage clip in PA46 / AEM with Twist-Lock mechanism.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Orange (OG)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION CHP2W20-24NA-PA46-OG
    Pack Cont. 150pcs.
    Package Content packed in box
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type CHP2W20-24NA
    Bundle Diameter max (metric) 24.0mm
    Bundle ∅ 20.0-24.0mm
    Bundle ∅ min. 20.0mm
    Weight/Unit 0.03kg
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin IT
    Customs Number 39269097
    GTIN-13 / EAN 4031026660530
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 150
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0226m³
    Packaging 3 - Weight (kg) 5.0kg
    Packaging 3 - Width (m) 0.27m
    Packaging 4 - Height (m) 10.24m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 4800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 9.83m³
    Packaging 4 - Weight (kg) 181.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
