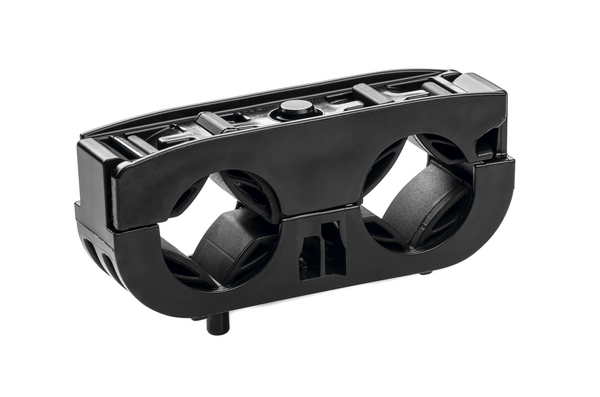

AEM-BK | Details

Soft AEM inserts protect the wiring from crushing, abrasion and chemicals

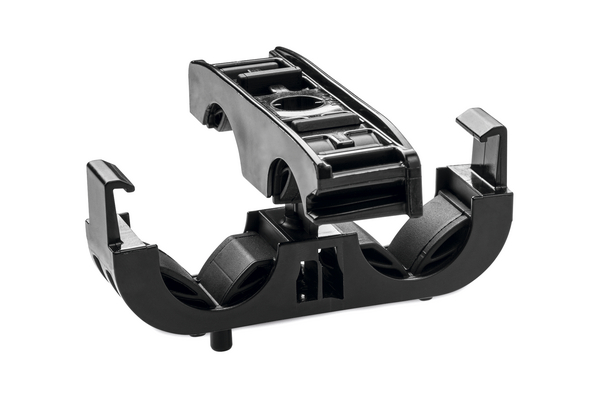

Easy installation thanks to the special closure
In PA6HS for temperatures up to 90°C and PA46 for temperature up to 150°C
For fixing on 5.0 mm studs with anti-rotation pin
For 2 cables or parallel routing
The Twist-Lock closing system (20.0 - 24.0 mm) acts with the same force on both compartments and significantly increases the necessary reopening force by decreasing the closing force
Rotatable fastener = 20.0 -24.0 mm bundle diameter
Hinge lock = 14.0 -17.0 mm bundle diameter

Request your individual offer now

Request quote

More products in this product group:

Application	These clips are designed for the installation of high voltage cables in the automotive sector or electric vehicles in general, but can be used for any application requiring parallel wiring. The sturdy clip fixes and guides cables and corrugated conduits in a stable and optimal way, keeping the wiring parallel even in the presence of strong vibrations. The HV-Clips are available as CLP, CMP and CHP parts. The "L" stands for lower performance (EPDM), the "M" for medium performance (heat resistant + AEM) and the "H" for high performance (PA46 + AEM). The HV clips can also be produced with other material combinations or are already available.
Colour	Black (BK)
Key product features	vibration absorbing, sealed, for multiple routing
Material	Polyamide 6, heat stabilised (PA6HS), Ethylene acrylate copolymer (AEM)
PART DESCRIPTION	CMP2W20-24-PA6HS/AEM-BK
Pack Cont.	150pcs.
Package Content packed in	box
Product Family	for multiparallel routing
Product Group	Fixing elements for tubes and harnesses
Type	CMP2W20-24
