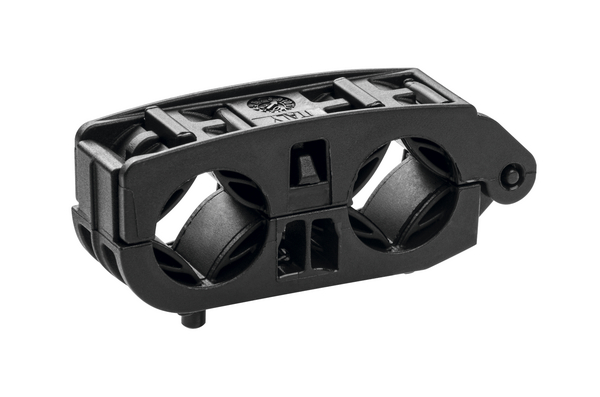

Cable clip for hole (round)/for stud, Dmin=14.0mm, Dmax=17.0mm, ∅M5
Art.-Nr. 151-03352 | CLP2W14-17-PA66HS/EPDM-BK |  Details

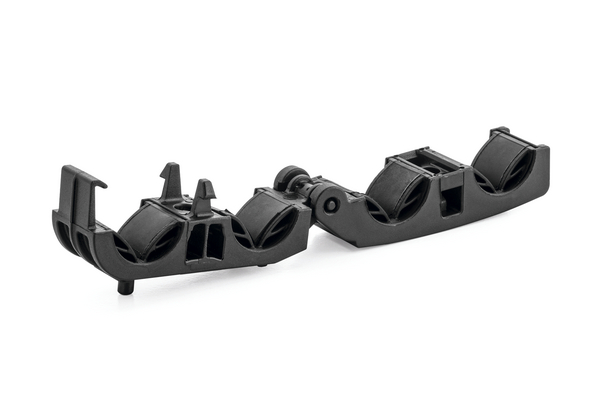

Double high voltage clip in PA6HS / EPDM with anti-rotation pin.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6.6, heat stabilised (PA66HS), Ethylene Propylene Diene Terpolymer rubber free of Nitrosamine (EPDM)
    PART DESCRIPTION CLP2W14-17-PA66HS/EPDM-BK
    Pack Cont. 250pcs.
    Package Content packed in box
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type CLP2W14-17
    Bundle Diameter max (metric) 17.0mm
    Bundle ∅ 14.0-17.0mm
    Bundle ∅ min. 14.0mm
    Stud ∅ M5
    Weight/Unit 0.02kg
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin IT
    Customs Number 39269097
    GTIN-13 / EAN 4031026651675
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 250
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0226m³
    Packaging 3 - Weight (kg) 5.5kg
    Packaging 3 - Width (m) 0.27m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 241.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
