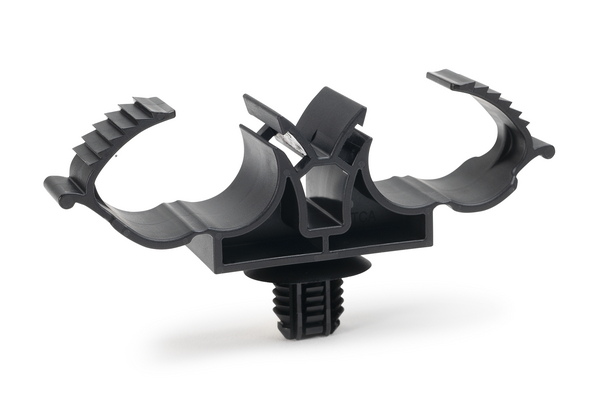

Cable clip for hole (oval), T=0.6 - 5.0mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=12.2mm, Dmax=18.2mm
Art.-Nr. 151-02965
| DHC12.2-18.2FTOVAL-PA66HIRHS-BK
|
Details
- 2-way clip for bundling and securing cables, for oval holes
- For parallel / multiple routing
- can be used without cable ties due to clip function
- Ratchet function allows for different cable diameters
- Clip can be opened for maintenance purposes without damaging the clip
Request your individual offer now
Request quote
More products in this product group:
This product is part of:
Sample_Pack_Wire_Harness
SamplePack_Fluid_Routing_Management
| Application | The clips are used to guide HV cables, harnesses and tubes. The products are designed to offer high stability within the application. The ratchet closure makes it possible to guide different cable diameters in parallel. |
| Colour | Black (BK) |
| Key product features | for multiple routing, lockable, releasable, for faster processing |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | DHC12.2-18.2FTOVAL-PA66HIRHS-BK |

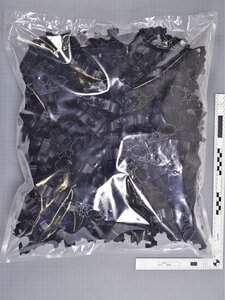

| Pack Cont. | 250pcs. |
| Package Content packed in | bag |
| Product Family | for multiparallel routing |
| Product Group | Fixing elements for tubes and harnesses |
| Short Description | 2-way clip for parallel routing of HV cables, harnesses and tubes. |
| Type | DHC12.2-18.2FTOVAL |
| Attach to Ø | 12.2 - 18.2 |
| Bundle Diameter max (metric) | 18.2mm |
| Bundle ∅ | 12.2-18.2mm |
| Bundle ∅ min. | 12.2mm |
| Height (H) | 46.0mm |
| Length (L) | 93.0mm |
| Panel Thickness max. | 0.6 - 5.0mm |
| Weight/Unit | 0.009808kg |
| Width (W) | 20.0mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 12.2 mm |
| for Panel Thickness min - max | 0.6 - 5 mm |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026625539 |
| Packaging 1 - Height (m) | 0.11m |
| Packaging 1 - Length (m) | 0.46m |
| Packaging 1 - Qty | 250 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01973m³ |
| Packaging 1 - Weight (kg) | 2.495597kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
