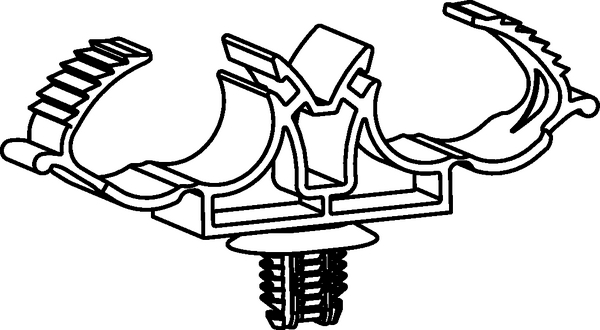

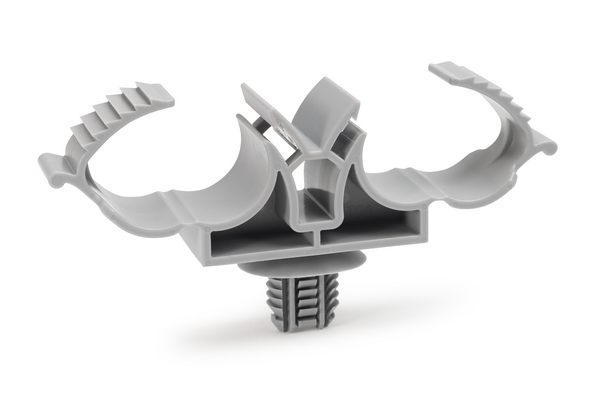

Cable clip for hole (oval)/for cable bundles, T=0.6 - 5.0mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=12.2mm, Dmax=18.2mm
Art.-Nr. 151-02966 | DHC12.2-18.2FTOVAL-PA46-GY |  Details

Fixing element for parallel routing of two harnesses or tubes (12.2 - 18.0mm).

    • 2-way clip for bundling and securing cables, for oval holes
    • For parallel / multiple routing
    • can be used without cable ties due to clip function
    • Ratchet function allows for different cable diameters
    • Clip can be opened for maintenance purposes without damaging the clip
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

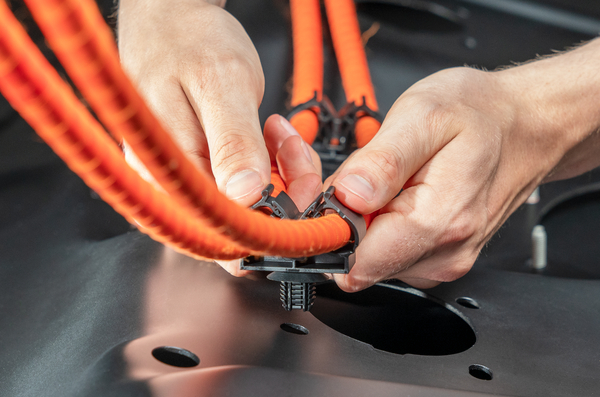

    Application The clips are used to guide HV cables, harnesses and tubes. The products are designed to offer high stability within the application. The ratchet closure makes it possible to guide different cable diameters in parallel.
    Colour Grey (GY)
    Key product features for multiple routing, for direct fixation, lockable, releasable, for faster processing
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION DHC12.2-18.2FTOVAL-PA46-GY
    Pack Cont. 300pcs.

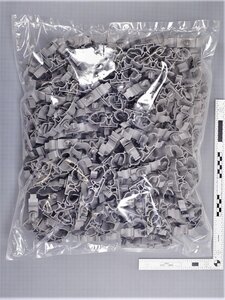

    Package Content packed in bag
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Short Description 2-way clip for parallel routing of HV cables, harnesses and tubes.
    Type DHC12.2-18.2FTOVAL
    Attach to Ø 12.2 - 18.2
    Bundle Diameter max (metric) 18.2mm
    Bundle ∅ 12.2-18.2mm
    Bundle ∅ min. 12.2mm
    Height (H) 46.0mm
    Length (L) 93.0mm
    Panel Thickness max. 0.6 - 5.0mm
    Weight/Unit 0.010665kg
    Width (W) 20.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 12.2 mm
    for Panel Thickness min - max 0.6 - 5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026625546
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.46m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01973m³
    Packaging 1 - Weight (kg) 2.709847kg
    Packaging 1 - Width (m) 0.39m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
