Available individually “without cable ties” only as consumables for the ATS flex.

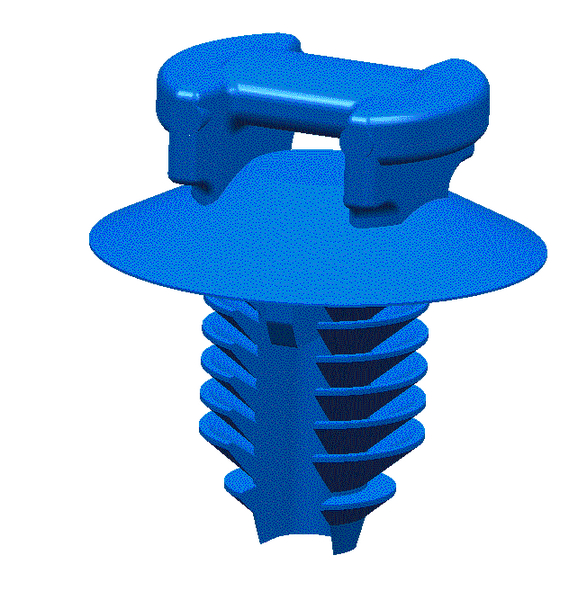

Fir tree clips for automatic cable tying systems
Art.-Nr. 102-67061 | ATS FT6 LG |

Copied

    This product is not available anymore.

    Alternative product available

    • Clips to fix cables and harnesses in the automotive and white goods industries
    • Optimized for use automatic cable tying systems
    • Easy to apply
    • The fixing elements can be tied automatically with Autotool System
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application In order to adapt to more use environments, a longer fir head has been developed, and the board thickness has been increased from a maximum thickness of 3mm to a maximum thickness of 6mm, which can cover all body use environments
    Fixation Method Fir Tree
    Internet Customer Notice Available individually “without cable ties” only as consumables for the ATS flex.
    Key product features products for automatic tools
    PART DESCRIPTION ATS FT6 LG
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family Fir tree clips for automatic cable tying systems
    Product Group Automatic bundling
    Short Description Foot sections with a slat geometry specially designed for use with an ATS 3080 or ATS flex autotool.
    Type ATS FT6 LG
    Bundle ⌀ 0.0-80mm
    Bundle ⌀ max. 80mm
    Bundle ⌀ min. 0.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.0006kg
    for Hole ⌀ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026271101
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 0.653478kg
    Packaging 1 - Width (m) 0.44m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 7.49678kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 170.84kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
