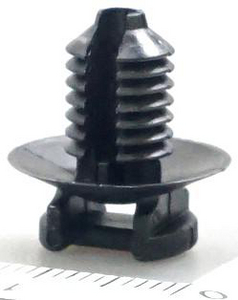

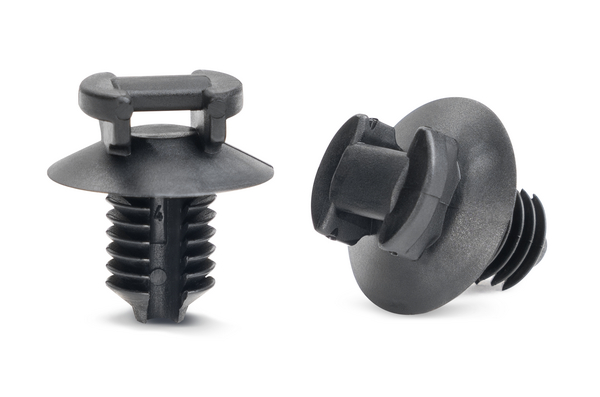

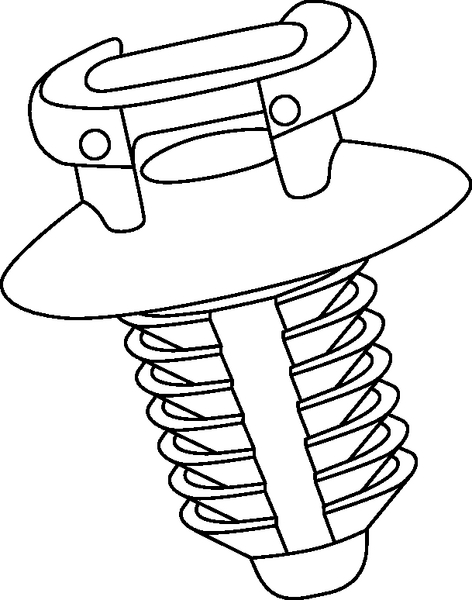

Cable tie mount, T=0.6 - 6.0mm, ∅6.5 - 7.1 mm, black, 2000pcs.
Art.-Nr. 102-67062 | ATSFT6LG-PA66HIRHS-BK |  Details

    • Clips to fix cables and harnesses in the automotive and white goods industries
    • Optimized for use automatic cable tying systems
    • Easy to apply
    • The fixing elements can be tied automatically with Autotool System
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Internet Customer Notice Scroll down for alternative automation-ready products.
    Key product features products for automatic tools
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION ATSFT6LG-PA66HIRHS-BK

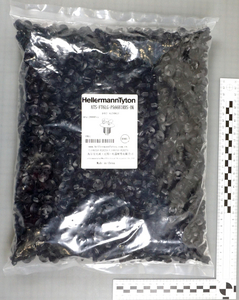

    Pack Cont. 2000pcs.
    Package Content packed in bag
    Product Family Fir tree clips for automatic cable tying systems
    Product Group Automatic bundling
    Short Description Foot sections with a slat geometry specially designed for use with an ATS 3080 or ATS flex autotool.
    Type ATSFT6LG
    Bundle Diameter max (metric) 80mm
    Bundle ∅ 0.0-80mm
    Bundle ∅ min. 0.0mm
    Length (L) 16mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.000558kg
    Width (W) 16mm
    for Hole ∅ (FH) 6.5 - 7.1 mm
    for Panel Thickness min - max 0.6 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026569505
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.31m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00543m³
    Packaging 1 - Weight (kg) 1.116001kg
    Packaging 1 - Width (m) 0.25m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 12000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 7.516006kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 240000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 171.32kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
