Cable tie mount, T=0.75 - 3.0mm, ∅6.3 - 7.0 mm, black, 500pcs.
Art.-Nr. 102-67067 | ATSFT6-PA66HIRHS-BK |  Details

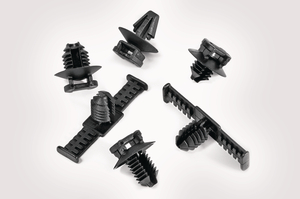

Automatic bundling clip for round holes with fir tree.

    • Clips to fix cables and harnesses in the automotive and white goods industries
    • Optimized for use automatic cable tying systems
    • Easy to apply
    • The fixing elements can be tied automatically with Autotool System
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Internet Customer Notice Scroll down for alternative automation-ready products.
    Key product features products for automatic tools
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION ATSFT6-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Product Family Fir tree clips for automatic cable tying systems
    Product Group Automatic bundling
    Short Description Foot sections with a slat geometry specially designed for use with an ATS 3080 or ATS flex autotool.
    Type ATSFT6
    Bundle Diameter max (metric) 80.0mm
    Bundle ∅ 0.0-80.0mm
    Bundle ∅ min. 0.0mm
    Panel Thickness max. 0.75 - 3.0mm
    Weight/Unit 0.0005kg
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.8 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026253763
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00151m³
    Packaging 1 - Weight (kg) 0.25898kg
    Packaging 1 - Width (m) 0.21m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 25000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.769kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 300000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 186.24kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
