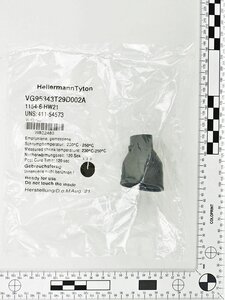

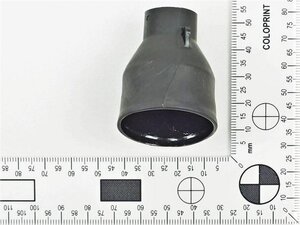

Right-Angle Shape VG-Style with Rib for Plugs black, PO-X
Art.-Nr. 411-54573 | 1154-6-HW21-PO-X-BK |

Copied
1152-4-G recovered onto a connector.

    • Used in conjunction with a circular grooved adaptor
    • Provides strain relief and an environmental seal
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1154-6-HW21-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, VG style
    Short Description Right-Angle Shape VG-Style with Rib for Plugs black, PO-X
    Type 1154-6-HW21
    Variant For plug
    ⌀H max. b 14.5mm
    ⌀H min. a 30mm
    ⌀J max. b 6mm
    ⌀J min. a 15mm
    ⌀J/K/L max. b 1.5mm
    Angle 90
    Flexibility Flexible
    HW ± 20 % 1.5mm
    HW ± 30 % 1.5mm
    JO ± 10 % 41mm
    JW ± 20 % 1.0mm
    JW ± 30 % 0.8mm
    M nom. 20mm
    P ± 10 % 41mm
    P ± 20% 41.0mm
    R ± 10 % 27mm
    S nom. 12mm
    T ± 20 % 1mm
    V max. 3.3mm
    Weight/Unit 0.004202kg
    Adhesive W21
    Designation as per VG-Norm VG 95343 T29 D 002 A
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Halogen-free Yes
    Hazardous Goods No
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Specifications VG 95343-29:2012-09
    Tensile Strength 10MPa
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660636028
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.185m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.001068375m³
    Packaging 1 - Weight (kg) 0.004203kg
    Packaging 1 - Width (m) 0.165m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
