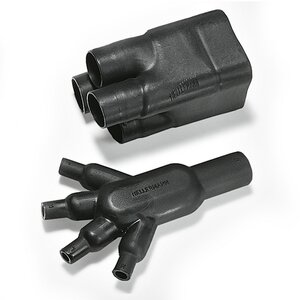

4-Way Outlet Shapes VG-Style black, PO-X, up to 3:1
Art.-Nr. 404-03180
| 403-1-G-PO-X-BK
|
Details
- 4-way outlet shape
- Cable sealing, strain relief and mechanical protection
Request your individual offer now
Request quote
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 403-1-G-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | pcs. |
| Product Family | Helashrink 400 Series |
| Product Group | 4-Way Outlet Shapes, VG style |
| Short Description | 4-Way Outlet Shapes VG-Style black, PO-X, up to 3:1 |
| Shrink Ratio | up to 3:1 |
| Type | 403-1-G |
| Variant | For 4-core cables |
|
|
| Flexibility | semi rigid |
| HW ± 20 % | 2.5mm |
| JW ± 30 % | 1.5mm |
| P ± 10 % | 102mm |
| P ±10%=overall length | 51.8mm |
| R nom. | 49.0mm |
| R ± 10 % | 49.0mm |
| S nom. | 45.0mm |
| S ± 10 % | 45.0mm |
| T ± 10 % | 52mm |
| W ± 10 % | 1.5mm |
| Weight/Unit | 0.02kg |
| ∅H max. b | 13.0mm |
| ∅H min. a | 27.0mm |
| ∅J max. b | 7.0mm |
| ∅J min. a | 13.0mm |
| ∅J/K/L/N max. b | 7.0mm |
| ∅J/K/L/N min. a | 13.0mm |
| ∅K max. b | 7.0mm |
| ∅K min. a | 13.0mm |
Download
| Designation as per VG-Norm | VG 95343 T08 E 004 A |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +135 °C |
| Nato number | 5970-12-309-8363 |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | VG 95343-8:2016-03 |
