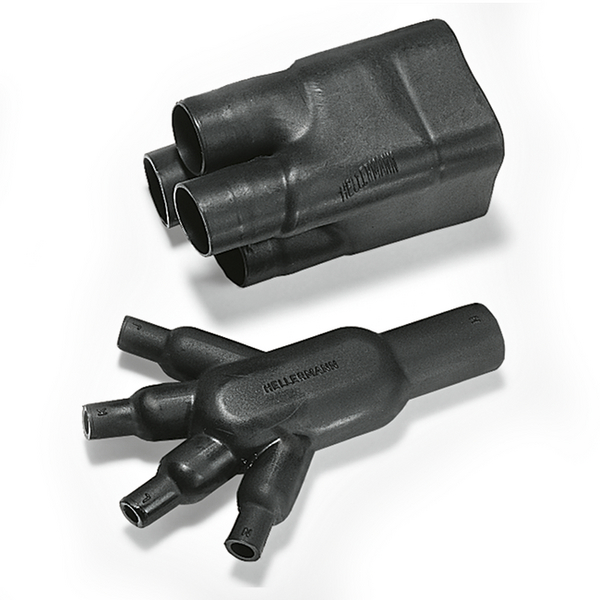

4-Way Outlet Shapes, VG style
Art.-Nr. 404-11001 | 411-1-B7-PO-X-BK |  Details

403-1 supplied / fully recovered.

    • 4-way outlet shape
    • Cable sealing, strain relief and mechanical protection
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 411-1-B7-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 400 Series
    Product Group 4-Way Outlet Shapes, VG style
    Type 411-1-B7
    Variant For 4-core cables
    Flexibility semi rigid
    HW ± 30 % 2.0mm
    JW ± 30 % 1mm
    P ± 10 % 71mm
    P ±10%=overall length 71mm
    R nom. 36mm
    R ± 10 % 36mm
    S nom. 32mm
    S ± 10 % 32mm
    T ± 10 % 36mm
    ∅H max. b 10mm
    ∅H min. a 19mm
    ∅J max. b 5.5mm
    ∅J min. a 9.5mm
    ∅J/K/L/N max. b 5.5mm
    ∅J/K/L/N min. a 9.5mm
    ∅K max. b 5.5mm
    ∅K min. a 9.5mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-00-939-8490
    Operating Temperature -50 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660461668
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
