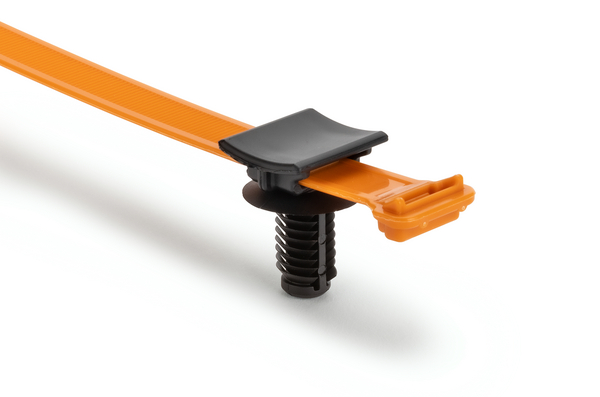

Fixing tie for hole (round), ∅9.4-82.6mm, orange/black, 100pcs.
Art.-Nr. 156-04037 | WSIFT9HCLG-PA66HIRHS/PA66HIRHSUV-OG/BK |  Details

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION WSIFT9HCLG-PA66HIRHS/PA66HIRHSUV-OG/BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT9
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Type WSIFT9HCLG
    Bundle Diameter max (metric) 82.6mm
    Bundle ∅ 9.4-82.6mm
    Bundle ∅ min. 9.4mm
    Height (H) 1.4mm
    Length (L) 307.0mm
    Min.Tensile Strength 533N
    Panel Thickness max. 1.0 - 12.7mm
    Width (W) 13.97mm
    for Hole ∅ (FH) 8.75 - 9.25 mm
    for Panel Thickness min - max 1 - 12.7 mm
    for Panel Thickness min - max 0 - 0.5 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026665771
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
