23/12/2024

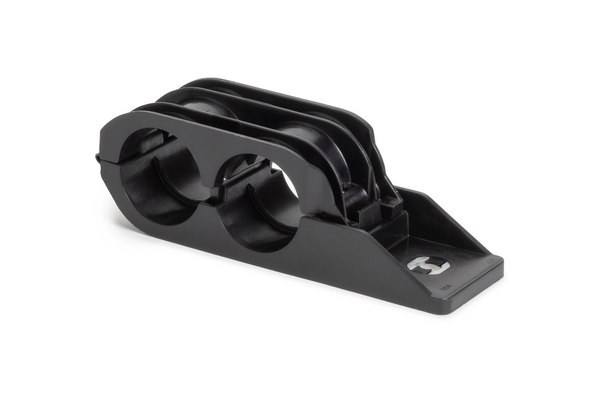

Cable clip for hole (round)/for stud, ∅M6, Dmax=24.0mm
Art.-Nr. 151-03905 | DHVC24M6-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Stud Mount
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION DHVC24M6-PA66HIRHSUV-BK
    Pack Cont. 250pcs.
    Package Content packed in carton
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type DHVC24M6
    Bundle Diameter max (metric) 24.0mm
    Bundle ∅ 24.0mm
    Height (H) 32.0mm
    Length (L) 100.5mm
    Width (W) 30.5mm
    for Hole ∅ (FH) M6
    ∅ max. 1. loop 24.0mm
    ∅ max. 2. loops 24.0mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026709109
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.589m
    Packaging 3 - Qty 250
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0613m³
    Packaging 3 - Weight (kg) 4.8kg
    Packaging 3 - Width (m) 0.286m
    Packaging 4 - Qty 6000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Cable clips Cable clips

    Cable clips for industrial applications

    From adhesive cable clips to wire clips for parallel routing or fluid management: Discover our product portfolio here.

    Cable clips >
    Ratchet P Clamp Ratchet P Clamp

    Ratchet P-Clamp for mounting cables and hoses

    Discover the versatile addition to our range of metal and plastic cable clamps: the Ratchet P-Clamp. The innovative design makes it possible to fix wires, cables, hoses and pipes on a single mounting point in two separate work steps. Installers and maintenance engineers no longer have to hold the bundle and the clamp awkwardly in one hand whilst fixing them securely with the other.

    P-Clamp >
