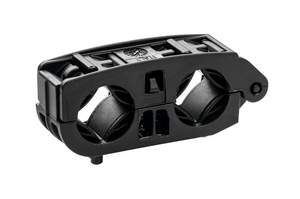

Cable clip for hole (round)/for stud, ∅M8 x 1.25 Threaded, Dmin=18.5mm, Dmax=19.5mm
Art.-Nr. 151-03790 | HDC19x2-PA66GF15/TPE-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF15), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION HDC19x2-PA66GF15/TPE-BK
    Pack Cont. 400pcs.
    Package Content packed in carton
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type HDC19x2
    Bundle Diameter max (metric) 19.5mm
    Bundle ∅ 18.5-19.5mm
    Bundle ∅ min. 18.5mm
    Fixing Hole Centres (F) 1.73"
    Fixing Hole Centres (F) 44.0mm
    Height (H) 33.2mm
    Length (L) 82.3mm
    Length (L2) 44.0mm
    Weight/Unit 0.0201kg
    Width (W) 26.0mm
    for Hole ∅ (FH) M8 x 1.25 Threaded
    ∅ max. 1. loop 19.5mm
    ∅ max. 2. loops 19.5mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026691152
    Packaging 1 - Qty 400
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 8.040001kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 400
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 8.810001kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 6000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 153.15kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
